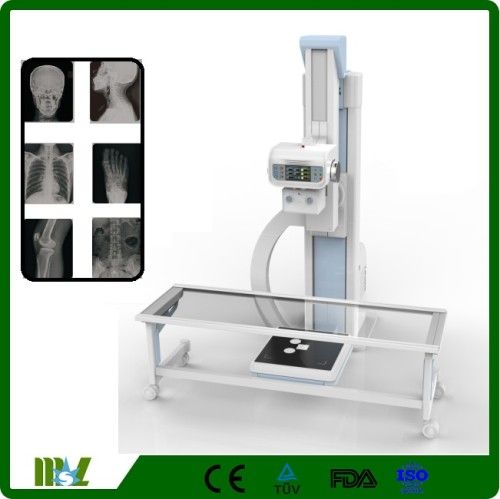

Digital High Frequency X-ray Radiography System 500mA X-ray Machine
Model No.:MSLDR04
Digital High Frequency X-ray Radiography System 500ma x-ray machine
High Frequency High Voltage X-ray Generator MSLG50R-A
X-ray Tube Assembly H1080
Collimator M-38
Digital Detector1717SCC
DR Machine Frame MSLDR-I
Radiography Table MSLS-III
Computer and LCD DCSM
Digital High Frequency X-ray Radiography System 500ma x-ray machine
High Frequency High Voltage X-ray Generator MSLG50R-A
| MSLG50R-A/ MSLO-IV operating console | |
| Power | AC380V ± 38V |
| Radiography Tube Voltage | 40kV ~ 150kV |
| Radiography Tube Current | 10mA ~ 630mA |
| Time | 2ms ~ 6300ms |
| Allowed Internal Resistance | 380V: 0.5Ω |
| Allowed Frequency Variation | 50Hz/60Hz ± 1Hz |
| Working Frequency | ≥30kHz |
X-ray Tube Assembly H1080
| Focus | 0.6mm/1.2mm |
| Rotating Speed | 3000rpm |
| Peek Tube Voltage | 150kV |
| Small Focus | 20kW |
| Large Focus | 50kW |
Collimator M-38
| Mode of adjustment | Manual |
| Power | 24VAC |
| Inherent Filtration | 1.2mmAL |
Digital Detector1717SCC
| Scanning Area | 17 × 17 inches |
| Spatial Resolution | not less than 3.6lp/mm |
| Total Pixel Matrix | 3328(h) × 3328(v) |
| Pixel Pitch | ≤127μm |
| A/D | 16Bit |
| Detector Imaging Time | not more than 4S |
DR Machine Frame MSLDR-I
| Up and Down Moving Range of UC arm with the Column | 700mm ~ 1700mm |
| Rotating Range of UC arm along with the Column | 0°~ 105° |
| Up and Down Moving Range of Detector | 700mm ~ 1700mm |
| Moving Range of X-ray Tube Assembly | 0 ~ 800mm±50mm |
| SID | 1000mm ~ 1800mm |
Radiography Table MSLS-III
| Tabletop Size (Length × Width × Height) | 2020mm × 690mm × 680mm |
| Mode of Operation | Manual |
| Load-bearing | Less than 200kg |
Computer and LCD DCSM
| CPU | ≥2.8GHz |
| Memory | ≥4GB |
| Disk Capacity | ≥500GB |
| Medical LCD | ≥19''; |
