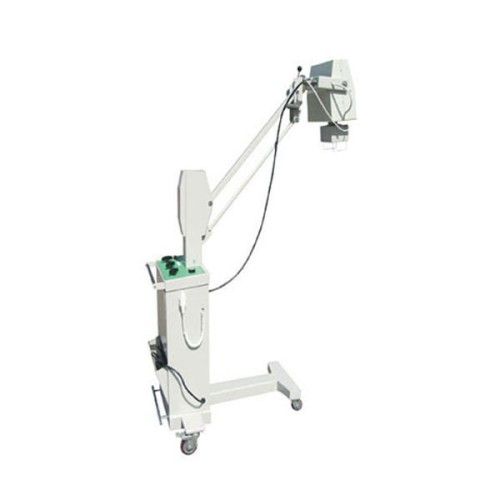

MSLMX12 50mA mobile radiographic unit


Specifications
50mA x-ray machine
50mA mobile x-ray machine
Mobile radiography

It is a kind of movable bedside x-ray radiographic unit, applicable to x-ray radiography in wards, operation rooms, movable clinics of accidents and veterinary hospitals etc.
It comprises x-ray generator, control table, flexible stretcher, x-ray tube (What is an x-ray tube? The construction of x-ray tube) support and movable base, etc. It is easy to install, flexible to move and reliable in performance.

The introdution of x-ray machine- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine? ...
Technical performance and parameters:

Power requirements: Single phase AC 220V, 50Hz.
Capacity: 3KVA Internal resistance: 1 Ω
Tube voltage: 40-90Kvp in 11 steps.
Tube current: 30 and 50Ma altogether 2 steps.


Shift range of x-ray generator:

Top height from floor: 1800mm, lowest height: 600mm
Rotating angle around horizontal axis: ± 180°
Rotating angle around vertical axis: ± 100°
Whole unit size: 1000*600*1300mm.

Net Weight: Gross: 190kg Packing Size: 161*88*161cm
