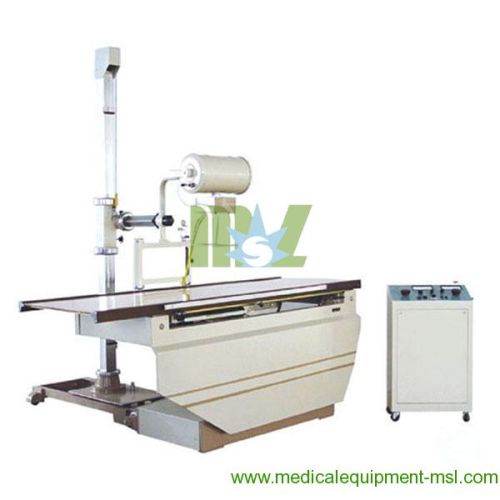

50mA Hospital X Ray Unit (MSLCX22)
50mA Hospital X rays Unit - MSLCX22
Introduction
It can apply for fluoroscopy and radiograph in the hospital and clinic. It also can be used for gastrointestinal examination. It has real-time radiograph device, Electric-line filter, limit beam positioning device, surface-moving electric diagnostic table and automatic overload protection circuit. An ideal multi-functional X-ray diagnostic machine.
General
It is suitable for both fluoroscopy and radiography in hospitals and health centers. It can also be used in conventional stomach examinations. The unit is provided with a spot-film device, a motor-driven Buck, a collimator and a motor-driven diagnostic table with the tabletop movable. It is an ideal X-ray diagnostic unit with multi-function
MSL sell all kinds of medical equipment (medical device, anesthesia machine, disabled equipment, ECG machine, ultrasound machine, X-ray machine and so on). If you have any demand, please do not hesitate to contact: Penny Zeng +86 132 1230 3286. We will offer best product and best service.
| 1. X rays unit suitable for both fluoroscopy and radiography |
| 2. X rays unit with conventional stomach examinations |
| 3. Ideal X-ray diagnostic unit |
Introduction
It can apply for fluoroscopy and radiograph in the hospital and clinic. It also can be used for gastrointestinal examination. It has real-time radiograph device, Electric-line filter, limit beam positioning device, surface-moving electric diagnostic table and automatic overload protection circuit. An ideal multi-functional X-ray diagnostic machine.
General
It is suitable for both fluoroscopy and radiography in hospitals and health centers. It can also be used in conventional stomach examinations. The unit is provided with a spot-film device, a motor-driven Buck, a collimator and a motor-driven diagnostic table with the tabletop movable. It is an ideal X-ray diagnostic unit with multi-function
MSL sell all kinds of medical equipment (medical device, anesthesia machine, disabled equipment, ECG machine, ultrasound machine, X-ray machine and so on). If you have any demand, please do not hesitate to contact: Penny Zeng +86 132 1230 3286. We will offer best product and best service.
| MAIN TECHNICAL PARAMETER | ||||
| X-ray generator | Stationary anode, double focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. | |||
| Max rated capability | Fluoroscopy | 75kVp,3mA | ||
| Radiography | Current | 50mA | 30mA | |
| Voltage | 90kVp | 90kVp | ||
| Time | 2s | 6.3s | ||
| Power supply | Voltage | 180~240V | ||
| Frequency | 50Hz | |||
| Power | not lower than 5kVA | |||
| Resistance | not larger than 1Ω | |||
| Voltage adjustment range of x-ray tube | 45~90kVp (continuous) | |||
| Range of the timer | 0.08~6.3 s | |||
| Fluorescent screen size | 356mm×356mm | |||
| Distance between the focus to the screen | Max 830mm | |||
| min 630mm | ||||
| Tube head carriage movement range | Vertical: 1100mm | |||
| Horizontal: 260mm | ||||
| Specification of X-ray tube | XD6-3.5/100 Stationary anode, double focus, 2.6mm×2.6mm/1.0mm×1.0mm | |||
