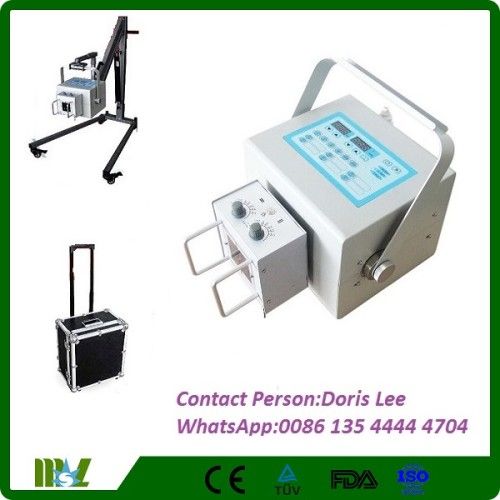

4kw Portable Digital X-ray Machine

6000-8000 USD

Portable medical diagnostic x ray machine - MSLPX02

1, 4kw portable x ray unit
2, medical x-ray machine
1. Application of portable x-ray(MSLPX02)
The 4kW portable high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.

2. Features of portable x-ray(MSLPX02):
1) Simple & light structure;
2) 6-segment LED display;
3) Anatomical memories for 24 selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.

3. Specifications of portable x-ray(MSLPX02):

Model	MSLPX02
Power supply	Voltage: AC220V± 10%, 50/60Hz ± 1Hz Capacity: ≥5kVA; Internal resistance: ≤0.5Ω
Maximum output power	P =110kV×36mA=4kW
Nominal output power	100kV,40mA,0.1s,4kW
Frequency	≥40kHz
kV adjustable range	40kV~110kV, continuous regulation, stepping 1kV
mA adjustable range	36mA~70mA
mAs adjustable range	1mAs-200mAs,continuous regulation, stepping 1kV
Exposure time adjustable range	0.04s~3.2s
X ray tube	Focus: 0.6/1.5mm, Thermal Capacity: 76kHU
Anatomical program	24 memory choices available
Accessories	Standard: manual switch,cable Optional: mobile steel support
