High Frequency Mobile Radiography Unit (MSLMX06)
MSLMX06 High frequency mobile radiography unit
Specifications
| 1. 3.5kW Medical mobile x-ray machine |
| 2. High frequency mobile x-ray machine |
| 3. Mobile x-ray unit |
| 4. Mobile x-ray equipment |
| 5. 3.5kW Mobile Radiography equipment |
The introdution of x-ray machine- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine?

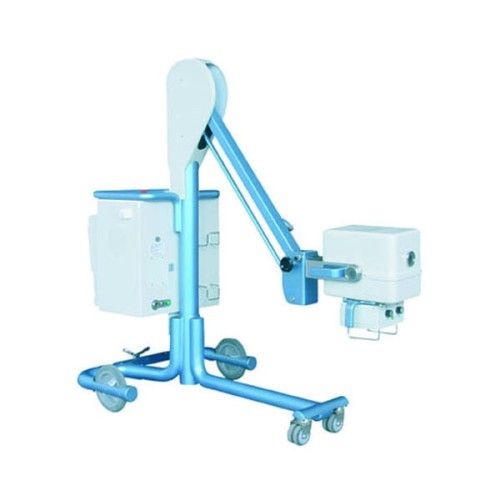

MSLMX06 Mobile Radiography Unit
One mobile stand with X-ray generator and control panel.
The MSLMX06 is designed primarily for applications in wards. However, it is also ideally suitable for use as a mobile diagnostic unit to support other hospital disciplines.
Features
| 1. Mobility |
| The MSLMX06 can be wheeled anywhere: a large revolving handle, supported by an extremely easy-to- manoeuvre trolley means it can be directed precisely and quickly to the patient, through narrow corridors and between closely-spaced rows of beds. operated from a standard socket, wherever it is needed. |
| 2. Easy to manage |
| The unobtrusive design means that the operator can concentrate, without distraction, on the procedure in hand. The hygienically designed operating panel was conceived with the user in mind: clear symbols make for easy setting of the parameters, and the values can be immediately checked on the display panel. |
| 3. Unique |
| The newly developed converter type generator technology with 3.5kW output makes the MSLMX06 the most efficient mobile X-ray unit in its class. |
Main Technical Parameter:
1 System Block
MSLMX06 is one mobile X-ray radiography unit.
It is consist of Stand and X-ray generator. The X-ray generator is type of HF converter and DC high voltage generator. System block is as follow:
Photo voltage rang:40 ~ 110Kv
Collimator position adjustment ± 180
Around the stent tube rotation: +180 ° / -45
Generator | ||
| Type | HF converter, DC High Voltage | |
| Voltage | Adjustable in steps of 1 kV from 40 to 110 kV | |
| mAs Values | Adjustable in 22 steps from 1 to 160 mAs, meeting R'10 noise reduction . It is 1, 1.3, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 and 160. | |
| Output | 3.5kW (100kV/35mA) | |
| 110kV 30mA | ||
| 80kV 46mA | ||
| 40kV 70mA | ||
| Working mode | Run in intermittent loading | |
| Tolerance | kV +/- 10 % | |
| mAs +/- (10 % + 0.2mAs) | ||
| X-ray Tube ( What is an x-ray tube? The construction of x-ray tube ) | ||
| Type | XD6A-0.5,3.5 / 125; Stationary Anode | |
| Material of Target | Tungsten | |
| Angle of Target | 15° | |
| Focal Spot Size | 1.5mm | |
| Normal Voltage | 110kV | |
| Max. Heat capacity | 57kJ (76kHU) | |
| X-ray Tube Assembly | ||
| Power | 3.5kW | |
| Max. Normal Voltage | 110kV | |
| Fixed filter | 2.7mmAl | |
| Isolation type | Oil | |
| Temperature Protective | 55°C Temperature relay | |
| Max. Heat capacity | 800kJ (1040kHU) | |
| Max continuous heat dissipation | 260W | |
| Collimator | ||
| Max. Field at 1m | 43cm X 43cm | |
| Data for Radiation | ||
| Total Filter | 2.8mmAl | |
| Leakage Radiation | Avg. Air Kerma Rate less than1.0mGy/h at all places that around and 1m distance from focal spot.(Loading set 110kV and work 10000mAs max in 1 hour) | |
| Irremovable filter : | 2.8mmAl | |
| Leakage Current | ||
| Leakage current to Ground | Normal:Not more than 2.5mA | |
| Single Fault:Not more than 5mA | ||
| Leakage current to Covers | Normal:Not more than 0.1mA | |
| Single Fault:Not more than 0.5mA | ||
| Power supply | ||
| Voltage | 220V ac | |
| Max. voltage tolerance | +/-10% | |
| Frequency | 50Hz | |
| Max. Frequency deviation | +/-1Hz | |
| Max. impedance | 0.60W | |
| Fusing | 220V,16A Slow | |
| Environment | ||
| Temperature | 10 to 40°C | |
| Relative Humidity | 30 to 75% | |
| Atmospheric Pressure | 700 to 1060hPa | |
| Movement and Weight | ||
| Distance from Tube Focal to Floor | 50cm to 190cm, adjustable | |
| Rotation around arm of Tube assembly | +90°to -90° | |
| Rotation around axis of Tube assembly | -45°to +90° | |
| Weight | 102kg | |
