4 Wires Stainless Steel Diamond Shape Stone Extraction Basket

10+

35-40 USD

Model NO.	JHY-BAS
Certification	CE, SGS, FDA, ISO13485, Cmdcad
Quality Guarantee Period	Two Years
Logo Printing	OEM, Customerization
Package Material	PE+Tyvek(1059b), Corrugated Carton
Transport Package	Standard Carton
Origin	Changzhou, Jiangsu, China
Type	Endoscopic Accessories
Ethylene Oxide Sterilization	Ethylene Oxide Sterilization
Group	Adult or Children
Medical Device Regulatory Type	Type 2
Trademark	JIUHONG
Specification	Gallstone Extraction Basket
HS Code	9018909010

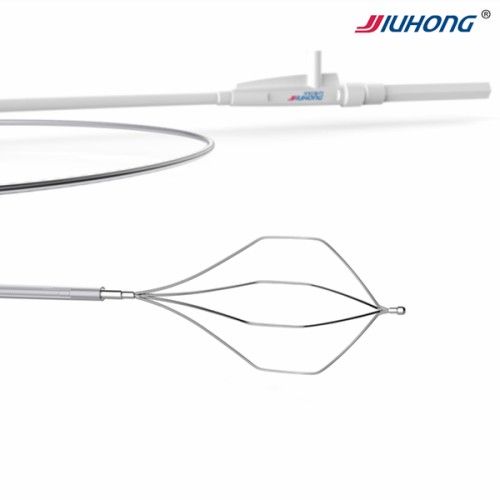

4 Wires Stainless Steel Diamond Shape Stone Extraction Basket
Intended use
Remove gallstone in biliary duct and foreign bodies in digestive tract.
( Disposable Stone Extraction Basket - BAS )
Features
*Innovational handle design, with functions of push, pull and rotation, easier to grasp gallstone and foreign body.
*Convenient for injection of contrast medium with injection port on handle.
*Made by advanced alloyed material, ensure good shape retention even after difficult stone removal.
Material Table

Component	Material	Standard
Guiding Head	X5CrNiMo17-12-2	EN10088-1-2005
Basket	X5CrNi18-10 X5CrNiMo17-12-2	EN10088-1-2005 ASTM F2063-2012
Outer Tube	PTFE	ISO13000-2005
Pulling Wire	X5CrNi18-10	EN10088-1-2005
Protective Sleeve	Pebax	ISO1874-2010
Front Handle	ABS	ISO2580-2-2003
Sealing Ring	Silicon Rubber	ISO-23529-2010
Rear Handle	ABS	ISO2580-2-2003

Specifications

Model	O.D. (mm)	Worth Length (mm)	Basket Width (mm)	Endoscope Channel (mm)	Characteristics
JHY-BAS-18-70-15-S4-A-O	1.8	700	15	≥2.0;2.0;2.0	Stainless Steel, 4 wires, diamond shape, single-hand operation
JHY-BAS-18-70-20-S4-A-O	1.8	700	20	≥2.0;2.0;2.0	Stainless Steel, 4 wires, diamond shape, single-hand operation
JHY-BAS-23-200-25-S4-A-D	2.3	2000	25	≥2.8;2.8;2.8	Stainless Steel, 4 wires, diamond shape, both hands operation
JHY-BAS-23-200-30-S4-A-D	2.3	2000	30	≥2.8;2.8;2.8	Stainless Steel, 4 wires, diamond shape, both hands operation
JHY-BAS-23-200-35-S4-A-D	2.3	2000	35	≥2.8;2.8;2.8	Stainless Steel, 4 wires, diamond shape, both hands operation
JHY-BAS-18-70-15-N4-B-O	1.8	700	15	≥2.0;2.0;2.0	Nitinol, 4 wires, spiral shape, single-hand operation
JHY-BAS-18-70-20-N4-B-O	1.8	700	20	≥2.0;2.0;2.0	Nitinol, 4 wires, spiral shape, single-hand operation
JHY-BAS-23-200-20-N4-B-D	2.3	2000	20	≥2.8;2.8;2.8	Nitinol, 4 wires, spiral shape, both hands operation
JHY-BAS-23-200-30-N4-B-D	2.3	2000	30	≥2.8;2.8;2.8	Nitinol, 4 wires, spiral shape, both hands operation
JHY-BAS-18-70-15-N4-C-O	1.8	700	15	≥2.0;2.0;2.0	Nitinol, 4 wires, semi-circle shape, single-hand operation
JHY-BAS-18-70-20-N4-C-O	1.8	700	20	≥2.0;2.0;2.0	Nitinol, 4 wires, semi-circle shape, single-hand operation
JHY-BAS-23-200-20-N4-C-D	2.3	2000	20	≥2.8;2.8;2.8	Nitinol, 4 wires, semi-circle shape, both hands operation
JHY-BAS-23-200-30-N4-C-D	2.3	2000	30	≥2.8;2.8;2.8	Nitinol, 4 wires, semi-circle shape, both hands operation
