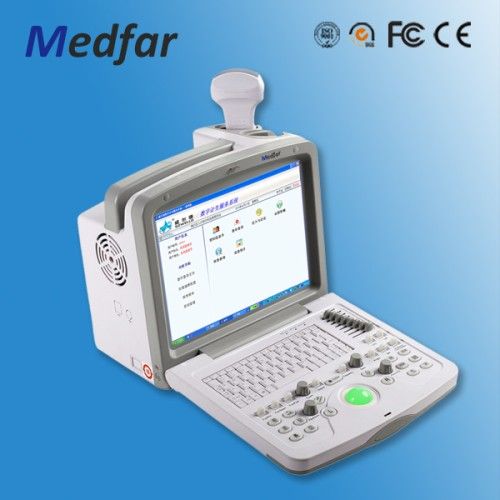

Digital Family Planning Service Ultrasonic MFC160

bargain

Model NO.	MFC160
Type	Ultrasound Scanner
Group	Female
Display Mode	B, B+B, B+M, B+M/M, M, 4b
Grey Scale	256
Origin	Shandong, China
Classification	Imaging Diagnostic Equipment
Certification	CE, SGS, ISO13485
Scanning Mode	Convex/Liner/Micro-Convex
Scanning Depth	≥250mm250mm50mm
Trademark	Medfar

MFC160

Software of the digital family planning service system

Clinical application

For medical unit abdomen ultrasonic examination and family planning pregnant examination

Product Introduction

Main Unit Parameters

Platform	PC Control Platform based on WINDOWS system
Software	Fertile woman information module, pregnant examination module, double exam information query and statistics module, floating population administration
Data transmission	data long-distance transmission

Feature

Support ID,iris, camera and fingerprint input, built-in fertile woman information management, pregnant examination, fertile woman information query and statistic, system management, login management, data long-distance transmission, several modules are set
Technical Specifications

Scanning Mode	Convex/Liner/Micro-convex
Display Mode	B, B+B, B+M, B+M/M, M, 4B
Scanning Depth	≥250mm50mm50mm
Grey Scale	256
Cine-Loop	≥600 framesamesames
Image Storage	BMP, JPG, DCM, and tif are available; built-in hard disk≥160G160G160G
Image Process	Up/down, Edge enhancement, tissue harmonic, image enhancement, Scanning Line Density, M Speed, Frame Correlation, Gamma Correction and Histogram
Local Zoom	≥5 times both in real time and freezeeezeeeze
Pseudo-color	≥10e;10e;10
Measurement	gynecology, obstetrics, cardiac, urology, abdomen, vessel, hip, fetal heart, prostate, kidney, testicular artery, thyroid etc

Image-text medical record manage system	with add, query, amend, generate reports function etc
Port	Video, XGA, USB2.0, DICOM3.0, RS-232
Monitor	12.1 inch LCD
Body Marks	≥95e;95e;95
Text	Full-screen Chinese/English input, display clock, date, medical record No ., name, gender, age etc
Power Supply	≥AC 100V-240 V, 50 Hz/60 Hz0 Hz0 Hz
Probe Connector	≥2ge;2ge;2
Standard Configuration	3.5 MHz Convex Probe
Optional Configuration	7.5 MHz Liner Probe 5.0 MHz Micro-convex Probe 6.5 MHz Transvaginal Probe (R10, R13) 7.5 MHz Endorectal Probe Video printer Biopsy Bracket

Accessories

· ID card readerd readerd reader

· camera; camera; camera

· fingerprint devicet devicet device

· iris recognition devicen devicen device
