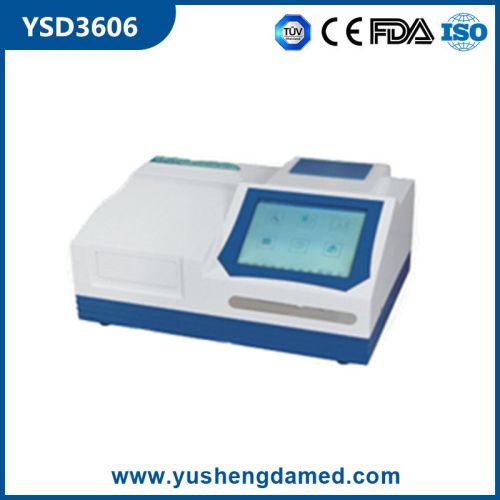

Multi-Parameter Medical Equipment Automatic Microplate Elisa Reader
| Model NO. | YSD3606 |
| Test Items | Kidney,Electrolyte,Lipid,Health Check etc |
| System | Win7 and Win XP,Lis,His |
| Reading Speed | Single Wave 5s, Dual Waves 10s |
| Manufacture | Yes |
| Weight | 9kg |
| Transport Package | Standard Export Package |
| Origin | China Chengdu |
| Measurement System | 8-Channel Optical System |
| Range of Working Wavelength | 400nm-800nm |
| Data Port | 4 USB, 1 RS232. |
| Display | 7.5 Inch Touch Screen |
| Printer | Build-in Thermal Printer |
| Trademark | YSD |
| Specification | 42cm(H)*35cm(W)*17.8(L)cm |
| HS Code | 902780990 |
YSD3606 the instrument is compatible with registered diagnostic ELISA kits, primarily used in hospital or some detections related to clinical immunology.
Features
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
Features
Self -checking function
Filter choosing-mode: automatically
Large memory to pre-store 200 programs and save detection results o 105 pieces of plates
Internal printer and external printer via software
Checking mode: single wave/dual wave detection
High sensitivity, high accuracy, fast detection speed and friendly operation.
| Range of working wavelength | 400nm-800nm |
| Measurement System | 8-Channel optical system |
| Filters | 4 standard filters ((405.450, 492,630nm) or totally 10 filters can be installed |
| Reading speed | single wave 5s, dual waves 10s |
| Measurement Range | 0.000-4.000Abs |
| Photometric Accuracy | +0.001Abs(0.001-1.500Abs) |
| Stability | <0.005Abs5Abs |
| Linearity | <+1%(0.001-1.500Abs)Abs) |
| Display | 7.5 inch Touch Screen |
| System | Win7 and Win XP,LIS,HIS |
| Calculation Method | Two points, linear regression method, semi logarithmic method, ratio log method, full log method, exponential regression (Loga-C), Logit-Log, Point to point( Broken line method), Four parameter method, Two Square curve Three square curve and Three Square spline |
| Printer | Build-in thermal Print |
| Data communication | RS232 |
| Power supply | AC220V/110+22V,50Hz 60Hz +1HZ |
| Dimension | 420*350*178mm |
| Weight | 9Kg |
