Ce Certified New Automatic Hospital Machine Biochemistry Analyzer
| Model NO. | YSD100-Vet |
| Sample Volume | 100UL |
| Test Items | Kidney,Electrolyte,Lipid,Health Check etc |
| Feature | Fully Automatic,Light,Portable |
| Sample Type | Anti-Coagulation Whole Blood, Serum, Plasma. |
| Weight | 5kg |
| Transport Package | Standard Export Package |
| Origin | China Chengdu |
| Type.Analyzing Method | End Point, Rate, Fixed Time, Turbidimetry etc |
| Function | Body Health Analyzer |
| Testing Time | 12mini/Person |
| Data Port | 4 USB, 1 RS232. |
| Bar Code | Two-Dimensional Bar Code. |
| Trademark | YUSHENGDA |
| Specification | 31cm(H)*21cm(W)*28(L)cm |
| HS Code | 902780990 |

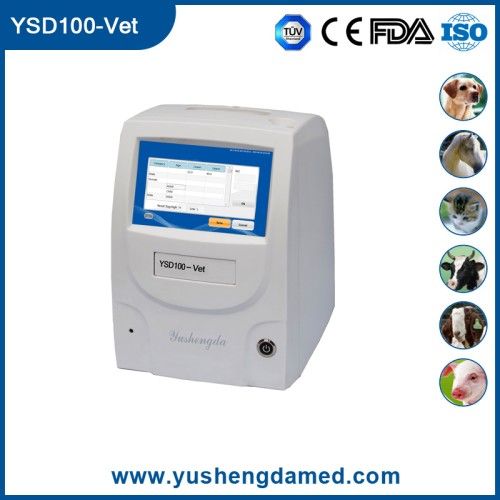

YSD100-Vet Portable Full-Auto Biochemistry Analyzer
clinical equipment fully automatic chemistry analyzer
Brief Introduction:
Δ. YSD-100-vet chemistry system is compact and easy to transport.ansport.nsport.
Δ. It is applied to lithium heparin anticoagulant whole blood, serum and plasma for clinical biochemistry analysis.nalysis.alysis.
Δ. For entire analysis, the YSD100-vet portable auto chemistry analyzer s requires 100ul sample and is capable of providing results in about 12 minutes.YSD100vetsystem consists of a portable analyzer and single-use disposable reagent discs.t discs. discs.
Δ. Advantage Simple operationperationeration
Free of centrifugation, water treatment system and professional doctor.
Δ. Anyone can operate only by 3 steps.3 steps. steps.
Add 100ul whole blood into disc, put disc into analyzer and delay 12 minutes to print report.
Δ. Little sample volumee volume volume
Sample volume is one-twentieth to one-tenth of normal chemistry analyzer.
Δ. Accurate Resulte Result Result
Test sample and dilution volume measured by mould, without random error.
Δ. No carryover.rryover.ryover.
Portable,5 Kg, 0.02m3
Provide with AC and DC power, suitable for use at movable place and outdoor.
Δ. Free maintenancentenancetenance
Δ. Auto QC and real time Calibrate.librate.ibrate.
Δ. Stroboscopic xenon lamp, service life is over one hundred million times.n times. times.
Δ. No internal fluid flow, no pump and valve, decrease machine fault.e fault. fault.
Test Items:
Specification:
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
clinical equipment fully automatic chemistry analyzer
Brief Introduction:
Δ. YSD-100-vet chemistry system is compact and easy to transport.ansport.nsport.
Δ. It is applied to lithium heparin anticoagulant whole blood, serum and plasma for clinical biochemistry analysis.nalysis.alysis.
Δ. For entire analysis, the YSD100-vet portable auto chemistry analyzer s requires 100ul sample and is capable of providing results in about 12 minutes.YSD100vetsystem consists of a portable analyzer and single-use disposable reagent discs.t discs. discs.
Δ. Advantage Simple operationperationeration
Free of centrifugation, water treatment system and professional doctor.
Δ. Anyone can operate only by 3 steps.3 steps. steps.
Add 100ul whole blood into disc, put disc into analyzer and delay 12 minutes to print report.
Δ. Little sample volumee volume volume
Sample volume is one-twentieth to one-tenth of normal chemistry analyzer.
Δ. Accurate Resulte Result Result
Test sample and dilution volume measured by mould, without random error.
Δ. No carryover.rryover.ryover.
Portable,5 Kg, 0.02m3
Provide with AC and DC power, suitable for use at movable place and outdoor.
Δ. Free maintenancentenancetenance
Δ. Auto QC and real time Calibrate.librate.ibrate.
Δ. Stroboscopic xenon lamp, service life is over one hundred million times.n times. times.
Δ. No internal fluid flow, no pump and valve, decrease machine fault.e fault. fault.
Test Items:
| The Types of Biochemistry Reagent Disc | |
| 1. 14Conventional Parameters | TC,ALT,AMY,ALB,ALP,GLU,GGT,UA,AST,TBIL,UREA,CREA,TG,TP |
| 2. 13 Health Check Parameters | ALT,ALB, AST, AMY, CA, CREA, GLU, TBIL, CK,TG,UREA, PHOS, TP, GLOB* |
| 3. 10 liver Function | ALT,TBA,AMY,ALB,ALP.GGT,AST,TBIL,CHE,TP |
| 4. 8 Kidney Function | Co2, CA,ALB,GLU,UA,P,UREA,CREA |
| 5. 7 Electrolyte | K+, Na+, Cl, CA, CO2, Mg, P |
| 6. 6 LipidParameters | ALT, ALP, AST, GLU, UREA, CREA, TP, LDH, CK |
| 7. 15 Comprehensive metabolism | NA,ALT,CO2,CA,ALB,ALP,GLU,CL,UA,AST,TBIL,UREA,CREA,K,TP |
| 8. The Others | It is workable to customize according to your request. |
Specification:
| Sample Type | Lithium Heparin Anticoagulant whole blood, serum and plasma |
| Sample Volume | 100ul |
| Bar Code | Two-dimensional bar code automatically read |
| Testing Time | 12mini/person |
| Testing Principle | Absorption spectroscopy, transmission turdimetry |
| Analyzing Method | End point, rate, fixed time, turbidimetry etc. |
| Temperature | 37ºC±0.2ºC±0.2ºCn;0.2ºC±0.2ºC |
| Absorbance | 0-3.0Abs |
| Resolution | 0.0001Abs |
| Carryover | 0 |
| QC & Calibratebratebrate | Auto and real-time to complete |
| Work Environment | Temperature:0-35ºC Humidity:idity:<90%y:<90% |
| Light Path System | After the filter spectral,8 wave length synchronous detection:340,405,450,505,546,600,630,850nm |
| Light source | 12V/20W, over 2500hours lifespan, halogen tungsten lamp |
| Power | AC100V-220V,50-60Hz; |
| Display | 7 true color LCD touch screen, multi-language choice. |
| Storage | ﹥100 thousandsand |
| Printer | Built-in thermal printer, external printer |
| Data Port | 4USB,1RS232,System upgrade by WIFI |
| Weight | 5Kg |
| Dimension | 31(H)*21(W)*28(L)CM |
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
