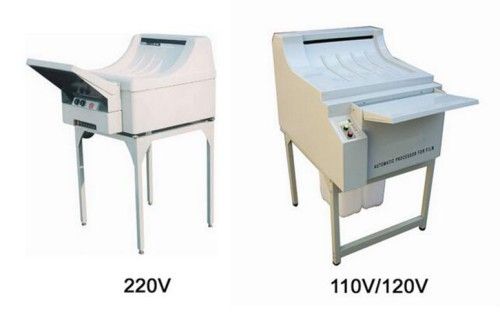

X-ray Film Processor (AM435-T)
Technology Date:
Developed film size: 5' x 7'~14' x 17';~14" x 17" x 17"
Max. Developing width: 430mm (17')quot;)
Channel volume: Developer 4.3L, fixer 3.6L, water 3.6L
Developing speed: 180S or 100-180S at option
Developing temp.: 28--35 at option
Developing capacity: 100PCS/h
Power source: AC220V, 50/60Hz
Power: 1.5kw
Product Characteristic:
Produce technology: The out casing are made of plastics mould. It's very strong, durable and anti-corrode.
Equipment Figure: New designed small body and beautiful outlook. Taking films very expediently due films turn above.
Install & Adjustment: Occupy small ground, install very freely, fit any dark room and put it on the table directly.ctly.ctly.
Film-Sending Frame: Safe Film-Sending systems come from one whole design, no films jamming or scratch.
High-Effect Drying: New wind route technical can blow all little water spot on the films. At the high net surrounding, can get distinct clear cut films.
Film-sending Board With Cover: Light and close film-sending cover board, operator may open lamp and leave after enter films. This design make work easily and improve work effect.
Critical Parts: The rollers' material can resist high-temperate and crystallization. No change shape and swell for using long time.
Circuit Control: Microprocessor controls heating, automatic check and touch films, replenishing chemicals.
Energy-Saving: Keep sleep situation when no films need process after a while. Stop heating and rolling, then cut enter water. This can save energy for max limit.
