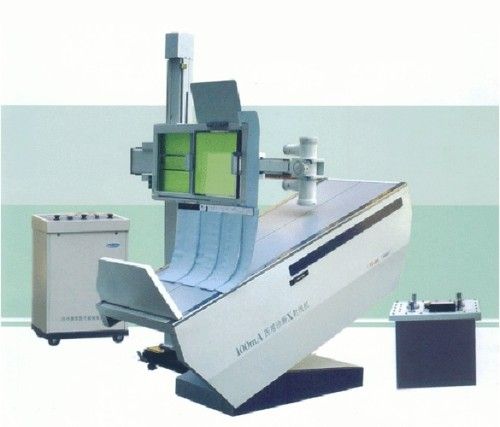

100mA X-ray Unit (with Radiogrphic and Fluoroscopy) (AM-100)

bargain

Model NO.	AM-100
Type	X Ray Equipment
Group	All
Trademark	AMISMED
Origin	China
Classification	Imaging Diagnostic Equipment
Certification	CE, ISO13485
Ma	100mA
Specification	CE, ISO
HS Code	9022140090

100mA X-ray unit with radiogrphic and fluoroscopy (AM-100)
MAIN CHARACTERISTICS:
1. Single bed and single tube
2. Design according to the electric medhanism of middle-size machine. The function is full and reasonable.
3. The high-tension system is of March-past structure. Equipped with afullwave rectification high-voltage generator and ifdependent X-ray tube unit, with large output power and reliable and stable operation.
4. Supply voltage V, roentgenoscopy, photograpy kV and stepless adjustable.
5. Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output.
6. Equipped with the capacity limitation and protection circuit and kV mA s interlock limitation and protection.
7. Adopt the digital circuit timer, grade according to R10 prioritycoefficient and can control time exactly.
8. Diagnostic bed ID of electric back rotation and is equipped with vibrating filter-ray device.
9. The spot film device of fluoroscent screen can hole the film Jacket of various sizes and can make the photograpy of full-film and half films separately.
10. The upright post has the bottom track only, which is easy while instalation.
USE:
Fluoroscopy
Digestive track spot film radiography
General radiography
Filter-ray device radiography
MAIN CHARACTERISTICS:
1. Single bed and single tube
2. Design according to the electric medhanism of middle-size machine. The function is full and reasonable.
3. The high-tension system is of march-past structure. Equipped with afullwave rectification high-voltage generator and ifdependent X-ray tube unit, with large output power and reliable and stable operation.
4. Supply voltage V, roentgenoscopy, photograpy kV and stepless adjustable.
5. Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output.
6. Equipped with the capacity limitation and protection circuit and kV mA s interlock limitation and protection.
7.Adopt the digital circuit timer, grade according to R10 prioritycoefficient and can control time exactly.
8. Diagnostic bed id of electric back rotation and is equipped with vibrating filter-ray device.
9. The spot film device of fluoroscent screen can hole the film jecket of various sizes and can make the photograpy of full-film and half films separately.
10. The upright post has the bottom track only, which is easy while instalation.
MAIN TECHNICAL DATA:

ITEM	CONTENT	INDEX
Roentgenoscopy	voltage	40~95kV 40~100kV
	current	0.5~5mA
Photograpy	voltage	40~90kV 40~100kV
	current	small focus 15mA and big focus 30,60,100mA four grades together
	spot film	100mA(fixed)
	time	0.04~6.3s grades togeter
High-voltage generator	capacity	10kVA
	Max dc output voltage	95kV 100kV
	Min dc output voltage	100mA 125mA
X-ray tube	model	XD4~2.9/100
	focus	small focus 1.8mm bitg big focus 4.3mm
Examining bed	rotary angle	+90°~0°~-5°°~-5°~-5°°~-5°
	specifi-cation of spot film(gastrointestinal photograpy)	128×179mm(5'×7')(5"×7")es;7')(5"×7")
		205×154mm(8'×10')8"×10")s;10')8"×10")
		254×305mm(10'×12')0"×12")s;12')0"×12")
Upright post	move lengthwis(along the bottom track)	≥1500mm00mm00mm
	move transverse	≥360mm60mm60mm
	move up and down(along upright post)	720~1720mm(from focus to ground)
Supply power	voltage	single phase 380V/220V
	frequency	50Hz ± 0.5Hzn; 0.5Hzn; 0.5Hz
	capacity	10KVA
	inner resistance	380V:2 Ω ,220V:0.6 Ω

MAX CAPACITY OF HPOTOGRAPY

Focus of X-ray tube	photograph mA	Max photograph KV	max allowable exposure time
Small focus	25mA	90kV 100kV	1.0s
Big focus	50 mA	90KV 95KV	6.3s
	100 mA	85KV 90KV	2.5s
	125 mA	85KV	1.0s
