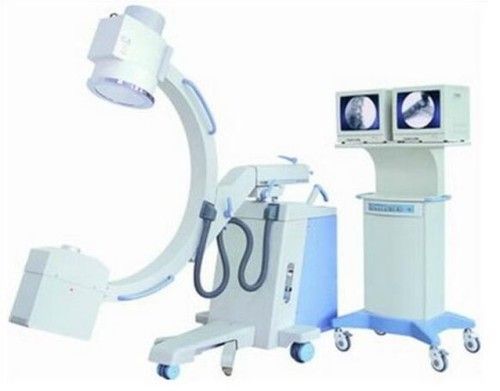

High Frequency Mobile X-ray C-arm System (AM-112)
Specifications
Fluoroscopic Capacity
Max rated capacity: 3.5kw
Max rated fluoroscopic capacity: Tube Current 4mA, Tube Voltage 110kV
Automatic Fluoroscopy:
Tube Voltage: 40kV~110kV adjust automatically
Tube Current: 0.3mA~4mA set manually
Manual Fluoroscopy:
Continuous Tube Voltage: 40kV~110kV
Continuous Tube Current: 0.3mA~4mA
Pulse Fluoroscopy:
Continuous Tube Voltage 40kV~110kV
Continuous Tube Current 4.1mA~8mA
Tube Voltage and Current Combination:
40kV~49kV 1 ~125 mAs
50kV~59kV 1 ~110 mAs
60kV~69kV 1 ~90 mAs
70kV~79kV 1 ~80 mAs
80kV~89kV 1 ~71 mAs
90kV~99kV 1 ~63 mAs
100kV~110kV 1 ~40 mAs
Plateholder size: 200mm x 250mm (8' x10') or 250mm x 300mm (10'x12')m (10"x12");x12")
X-ray Tube
X-ray Tube Special for High Frequency
Fixed anode rotary anode X-ray tube with Dual-focus
: Large focus: 1.5, small focus: 0.6
Inverter Frequency: 40KH
Thermal capacity: 35KJ (47KHU)
VideoSystem
Image Intensifier: Image Intensifier made by Toshiba (9')quot;)
CCD Vidicon: Imported CCD Vidicon with Ultra-low luminosity
Monitor: Horizontal 1000 lines and vertical 800 lines,
Bandwidth: 12.5MHz, Image/sec: 75
CCU(central control): Scan line by line, Recursive Filter: K=8, 8 images storage,
Image upright, image overturn, positive & negative image;mage;mage;
LIH(last image freeze, and OSD(monitor display)
Structure:
Directive wheel: ± 90° Revolution, can freely change the moving direction of the unit.of the unit.of the unit.
Ascending & Descending Range of Pillar: ≥ 400mme; 400mme; 400mm
C-arm: Forward and Backward Movement: 200mm
Revolution around Horizontal Axis: ± 180°mn; 180°deg;mn; 180°
Revolution around vertical axis: ± 15. Slip on orbit: 120° (+90° ~ -30° )90° ~ -30° )0° )90° ~ -30° )
Packing Details: 2440mm× 1100mm× 1420mmtimes; 1420mmtimes; 1420mm
N. W. 300kgs G. W. 400kgs
Features
1. With a compact appearance, and easy to operate;
2. Clinical Video system with high performance, 8 images storage volume, and two 14' high-resolution monitors;itors;
3. Automatically track fluoroscopy to make the image brightness and clearness optimum;
4. Automatically store the last image of fluoroscopy to advantage diagnosis;
5. With a high-quality knockdown X-ray generator to reduce radiation.
