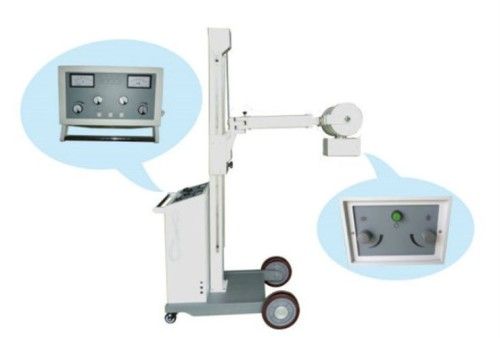

100mA MOBILE X-ray UNIT (F100)
1. General
Can be used in ward and emergency treatment room.
Can take a photograph of head, chest, abdomen, or lumbar etc of human.
It can be moved to sickroom to use.
The X-ray generator is combined, the unit with single focus and bridge rectification is shockproof and scattering-proof.
A wireless remote control device (control range ≥ 8m) is used.sed.sed.
The unit has a high frequency stability and strong anti-interference ability etc.
2. Main Technical Parameter
Max rated capability:
Current mA 15 30 60 100
Voltage kVp 90 90 90 80
Time sec. 6.3.6.3 4 3.2
Power supply:
Voltage 180-240V
Frequency 50Hz
Power 4KVA (not lower than 4 KVA)
Resistance ≤ 1Ω; 1Ω; 1Ω
Range of the timer:
Divided into steps 0.08-6.3s
Distance between the focus and the ground:
680mm-1760mm
Specification of X-ray tube:
Model: XD4-2.9/100
The X-ray tube:
Longitudinal movement 180mm
Transverse rotation ± 60°smn; 60°deg;smn; 60°
X-ray Generator
Stationary anode, double focus, and bridge silicon rectification.
The X-ray generator is an oil-immersed self-cooled unit.
Max rated capacity:
Current: 15mA 30mA 60mA 100mA
Voltage: 90kVp 90kVp 90kVp 80kVp
Time 6.3s 6.3s 4.0s 3.2s
Power supply Voltage: 180~240V; Frequency: 50Hz
Power: Not lower than 7kVA; Resistance: Not larger than 1Ω
Voltage adjustment range of X-ray tube: 50~90kVp
Range of the timer: 0.08~6.3s
Distance between the focus to the ground: 700~1780mm
X-ray tube focus transverse rotation: ± 60osmn; 60osmn; 60o
Specification of X-ray tubeModel XD4 2.9/100 fixed anode, double focus 1.8/4.3mm
Transport dimension (L× W× H) (mm)1230× 900× 205030× 900× 2050× 205030× 900× 2050
Weight (kg)Net: 159 / Gross: 256
