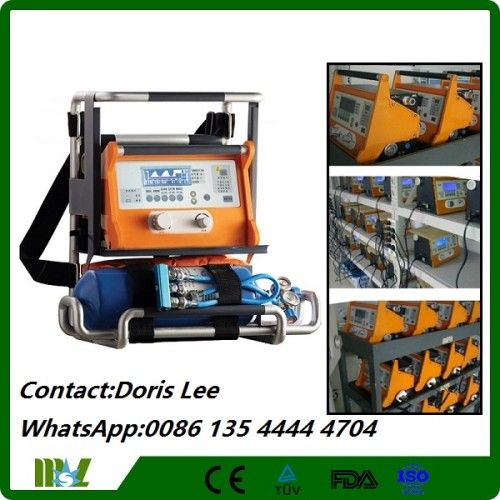

MSLVDM09 Ventilator

1,Aerospace quality, professional technology,popular model.
2,Easy to take, dampproof, quakeproof and salt fog resistance.
3,Invasive, noninvasive and manualventilation in one machine.
4,Volume regulation, pressure limit, time switch, demonstrating the strategy of lung protection.
5,Inspiration halt, convenient for sucking phlegm and avoiding cross infection.
6,Driven mode: pneumatically driven and electrically controlled.
7,Three kinds of power supply: A/C, D/C and onvehicle power supply.
8,Application: adult & child.


Ventilation modes
Volume control: A/C
SIMV
A/C + SIGH
Manual Ventilation
SPONT
NIPPV

Controlling part
Tidal volume (VT): 50ml~1500ml
Minute Volume: 0~20L/min
I/E Ratio: 1:0.3, 1:0.5, 1:0.7, 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:3.5, 1:4
Respiratory rate (f): 4~80bpm
Limited pressure: 1kPa ~ 5kPa
Trigger sensitivity: 2kPa ~ 2kPa
Continuous current: 3 ~ 5LPM
Manual inspiration halt: 20s
Inhaled oxygen concentration: 48% ~ 100% consecutive adjustment
Safety valve pressure limit: 5.1kPa ~ 6kPa

Monitoring part
LCD display
Airway pressure waveform
Inhaled tidal volume
Minute Volume
Total respiratory rate
Peak airway pressure
Trigger pressure
AC/DC indication
Could monitor all parameters and waveforms in manual mode

Audible and visual alarm part
Upper and lower airway pressure limit
Power supply failure
Low charge of battery
Others
Power supply: AC220V± 10%, 50Hz± 1Hz
12V onvehicle power supply
Builtin battery: provide a more than 2hour power supply when power off
Gas pressure: 0.25~0.6Mpa. Cylinder gas supply can work continuously for ≥30min.
Ventilator compliance: ≤40 x 10 2ml/Pa

Accessories
Standard configuration:

Optional
