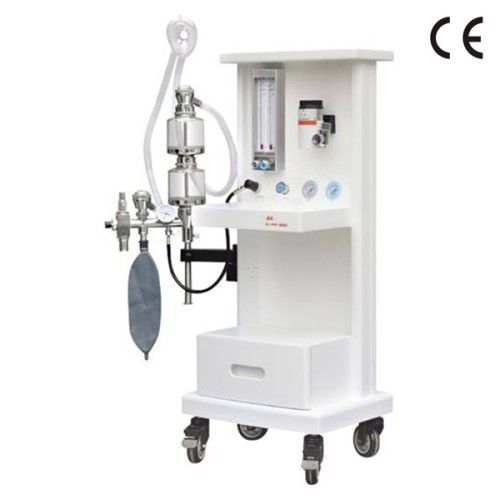

Veterinary Anesthesia Machine with CE

1000-1400 USD

MSLGA04 halothane anesthesia machine for veterinary: Generic evaporator, either Halothane, Enflurane, Isoflurane or Sevoflurane
Anesthesia equipment MSLGA04

Main body	High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of application	adult, child
Gas source	O2: 0.27~0.55MPa
Flow meter	O2: 0.1~2L/min 2.5~10L/min
Flow rate of rapid oxygen supply	25~75L/min
Low oxygen pressure alarm ( Oxygen Alarm )	There will be sound alarm when the oxygen pressure ﹤ 0.2MPa
Vaporizer ( Vaporizer Definition and Vaporizer Construction )	It has the function of automatic compensation based on pressure,temperature,and flow rate.The regulation range of evaporator concentration is 0~5 vol%.Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosen for application as required by the customer.
Respiratory circuit	working mode: all-close, semi-close, semi-open releasing pressure: 0.5~7 kPa
Respiratory bellows	bellows for adults, bellows for children tidal volume range:0~1500 ml
Ventilator ( Ventilator Definition and Ventilator Function )
Display mode
Ventilation mode	IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters	Tidal volume 50~1500ml Rate 2~99 bpm SIMV rate 2~20 bpm I:E 2:1~1:8 Inspiratory trigger pressure -1.0~2.0 kPa Pressure range 1.0~6.0 kPa
Parameters for ventilation monitoring	tidal volume, ventilation volume, IPPV rate, I/E, peak pressure of airway, inspiratory trigger pressure, pressure - time waveform
Security Alarm System
Airway pressure alarm	upper limit setting range 1.0~6.0 kPa low limit setting range 0.4~2.0 kPa
Per-minute ventilation volume alarm	upper limit setting range 3.0~30L/min low limit setting range 1.0~10L/min
Sustained high-pressure alarm	it will give alarm when stress have consistently been higher than 2.5 kPa
Suffocation alarm	it will give sound and light alarm if there is no tidal volume input in 15s
Power alarm Power	AC 220V±10% 50Hz±1Hz
