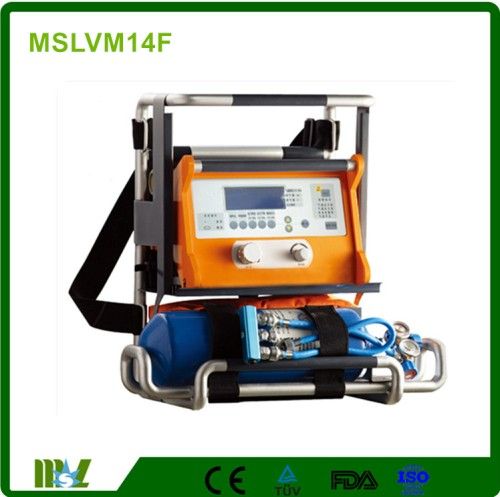

Hot Sell Convenient Portable Ventilator/ First Aid Equipment (MSLVM14F)
Features of the MSLVM14 ventilator:
1. Aerospace quality, professional technology, popular model
2. Easy to take, dampproof, quakeproof and salt fog resistance
3. Invasive, non-invasive and manual ventilation in one machine
4. Volume regulation, pressure limit, time swith, demonstrating the strategy of lung protection
5. Inspiration halt, convenient for sucking phlegm and avoiding cross infection
6. Driven mode: pneumatically driven and electrically controlled
7. Three kinds of power supply: A/C, D/C and on-vehicle power supply
8. Application: adult & child
Specifications of the MSLVM14F ventilator:
Ventilation modes:
Volume control: A/C, SIMV, A/C+SIGH, Manual Ventilation, SPONT, NIPPV
Controlling part:
Monitoring part:
LCD display
Airway pressure waveform
Inhaled tidal volume
Minute Volume
Total respiratory rate
Peak airway pressure
Trigger pressure
AC/DC indication
Could monitor all parameters and waveforms in manual mode
Audible and visual alarm part:
Upper and lower airway pressure limit
Power supply failure
Low charge of battery
Others:
Accessories:
Standard configuration:
Optional:
MedSingLong Global Group Co., Limited.
Your trust is our effort! Don't be hesitate, the best product and service is right here waiting for you!
Contact person: Christy Fung
Mob: +86 13631445394
1. Aerospace quality, professional technology, popular model
2. Easy to take, dampproof, quakeproof and salt fog resistance
3. Invasive, non-invasive and manual ventilation in one machine
4. Volume regulation, pressure limit, time swith, demonstrating the strategy of lung protection
5. Inspiration halt, convenient for sucking phlegm and avoiding cross infection
6. Driven mode: pneumatically driven and electrically controlled
7. Three kinds of power supply: A/C, D/C and on-vehicle power supply
8. Application: adult & child
Specifications of the MSLVM14F ventilator:
Ventilation modes:
Volume control: A/C, SIMV, A/C+SIGH, Manual Ventilation, SPONT, NIPPV
Controlling part:
| Tidal volume (VT) | 50ml~1500ml |
| Minute Volume | 0~20L/min |
| I/E Ratio | 1:0.3, 1:0.5, 1:0.7, 1:1, 1:1.5, 1:1.2, 1:2.5, 1:3, 1:3.5, 1:4 |
| Respiratory rate(f) | 4~80bpm |
| Limited pressure | 1kPa~5kPa |
| Trigger sensitivity | 3~5LPM |
| Manual inspiration halt | 20s |
| Inhaled oxygen concentration | 48%~100% consecutive adjustment |
| Safety value pressure limit | 5.1kPa~6kPa |
Monitoring part:
LCD display
Airway pressure waveform
Inhaled tidal volume
Minute Volume
Total respiratory rate
Peak airway pressure
Trigger pressure
AC/DC indication
Could monitor all parameters and waveforms in manual mode
Audible and visual alarm part:
Upper and lower airway pressure limit
Power supply failure
Low charge of battery
Others:
| Power supply | AC220V± 10%, 50Hz ± 1Hz; 12V on-vehicle power supply |
| Built-in battery | provide a more than 2-hour power supply when power off |
| Gas pressure | 0.25~0.6Mpa. Cylinder gas supply can work continuously for ≥30min |
| Ventilator compliance | ≤40 * 10^-2ml/Pa |
Accessories:
Standard configuration:
| Multi-functional main machine frame | 1 set |
| Cylinder | 1 unit |
| Oxygen bridge | 1 unit |
| Spanner | 1 unit |
| Accessories and accesories'bag | 1 unit |
| Dustproof bag | 1 unit |
Optional:
| PEEP(0-1kPa) | 1 unit |
| Plug-in module | 1 unit |
