Professional assortment and solutions for ICU and operation room

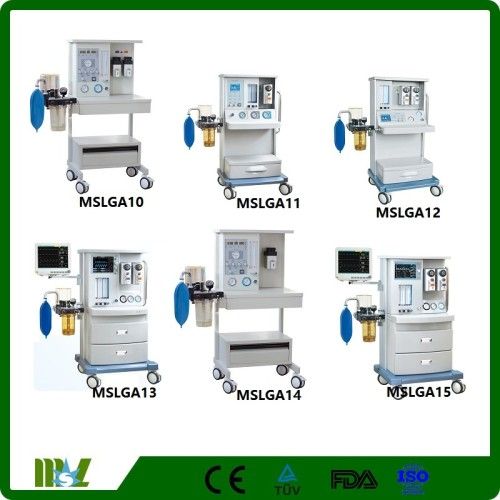

Hospital operation room device anesthesia ventilator machine

Screen: LED Display Screen
Suitable: Adult & Child
Mode: pneumatically powered and electrically controlled system
Working Mode: Closed; Semi-Closed; Semi-Open
Circuit: Breathing circuit integrated standards
Tube: 2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min
Trolley: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Saft: NO2 Automaticlly Cutting while oxygen deficiency
Drawer unit: Two drawer totally extractable

Physical specifications
Screen: LED Display Screen
SuitableAdult & Child
Mode:pneumatically powered and electrically controlled system
Working Mode:Closed; Semi-Closed; Semi-Open
CircuitBreathing circuit integrated standards
Tube:2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min
Trolley: Fitted with 4 nos anti-static rubber castors;
two of which are lockable for braking and easy
maneuverability with foot operated brake provisions
SaftyNO2 Automaticlly Cutting while oxygen deficiency
Drawer unitTwo drawer totally extractable
Technical Specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging
from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa.
safety valve ﹤12.5 kPa
Respiratory Rate4~40bpm
Flow meterO2:0.1~10L/Min, N2O:0.1~10L/Min
oxygen concentration in the mixed gas N2O/O2 ﹥ 21%
Oxygen Flush: 25~75 L/min
Maximum error of the pressure testing device not exceed ± (4% of the full scale reading + 8% of the actual reading)
modes of ventilationA/C,IPPV, SIPPV, MANUAL
I/E Ratio:1:1.5; 1:2.0;1:2.5; 1:3
Tidal Volume0~1500ML
Controlled ventilation and assisted
ventilation switching time		6s
Maximum safety pressure:≤ 12.5 kPa
Pressure limit range:0 ~ 6.0 kPa
Airway pressure alarm: Audible
and visual and with yellow and red color indicating		Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa
±0.2 kPa
Tidal volume alarm: Audible and visual and
with yellow and red color indicating		upper alarm: 50 to 2000ml,lower alarm: 0~1800ml
Power Supply AlarmAc/dc power supply are after failing to send out alarm immediately
Alarm Time: keep ﹥120s
Operating conditions
Ambient temperature: 10 ~ 40oC
Relative humidity:no higher than 80 %
Atmospheric pressure:860 hPa ~ 1060 hPa
Power requirement: 100-120 Vac, 50/60 Hz;
Air source requirement: Medical oxygen and laughing gas with
a rated pressure ranging from 0.3 to 0.5MPa.
Attention: the AC power supply used for the anesthesia machine must be well grounded.
Attention: the anesthesia machine used must be equipped with
a carbon dioxide monitor complying with ISO 9918:1993,
an oxygen monitor complying with ISO 7767:1997 and
an expiratory gas volume monitor complying with 51.101.4.2 of
Medical Electrical Equipment Part II: Special Requirements
for Safety and Basic Performance of Anesthesia System.
Configuration:
VaporizerEnflurane/ Isoflurane(Option: Halothane)
Storage
Ambient temperature: -15oC ~ +50oC
Relative humidity: no higher than 95 %
Atmospheric pressure: 86 kPa ~ 106 kPa.
It should be stored in a room without corrosive gas and well ventilated
Package
packaging boxcomply with the requirement of GB/T 15464
Between the packaging box and product, soft material
with appropriate thickness provided to prevent loosening
and mutual friction during transportation
Moisture protection and rain protection to ensure
that product is protected from natural damage.
Power
Power supply alarmAudible and visual
Battery Power Typical 30 mins +, upto180mins
lead-acid battery with a rated
output voltage of DC 12V
It should be charged at an interval no longer than 12h.
