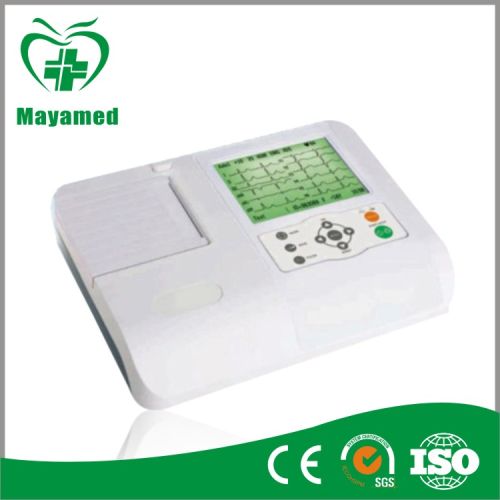

My-H004 Six Channel ECG Price

bargain

Model NO.	MY-H004
Type	ECG
Channels	Six Channel
LCD Display	320X240 Graphic LCD
Trademark	Maya
Specification	digital six channel
Classification	ECG
Medical Devices Reg./Record No.	Ysyjxzz20072210057
Lead	Standard 12 Leads
Dimension	310mmx235mmx66mm
Transport Package	Carton
Origin	China

Six channel ECG-923A
Six channel ECG-923ASix channel with interpretive
Six channel ECG-923A build in rechargeable Li battery
Six channel ECG-923A 128 patients save/copy/communication
Dimension: 310mmX235mmX66mm
Packing: 375mmX295mmX195mm
Weight: 4.5kg(gross); 3.57kg(net)
Six channel with interpretive
Build in rechargeable Li battery
Chinese/English language
Simultaneous 12 leads
320X240 graphic LCD, 5.7 inch screen
Paper size: 112mmX20/30m
Built in RS232 interface (USB is optional)
128 patients save/copy/communication

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; AUTO1; AUTO2; AUTO3
Filter	AC, EMG, Drift Fliter
CMRR	≥ 100dB(with AC filter)ter)ter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤ 0.1μ A1μ A; A1μ A
Input Impedance	≥ 2.5MΩ.5MΩ.5MΩ
Patient current leakage	< 10μ A0μ A
Calibrating voltage	1mV± 2%usmn; 2%usmn; 2%
Voltage tolerance	± 500mVn; 500mVn; 500mV
Time constant	> 3.2s
Frequency response	0.05 ~150Hz
Noise level	≤ 15μ Vp-pu; Vp-pu; Vp-p
Sensitivity valve	≤ 20μ V0μ V; V0μ V
Inter-Channel Interference	≤ 0.5mm.5mm.5mm
Paper speed	25, 50mm/s(± 3%)smn; 3%)smn; 3%)
Sensitivity	AUTO, 2.5, 5, 10, 20mm/mV
Recording mode	Thermal Array printing
Paper specification	112mmx30m, roll
LCD display	. 320x240 graphic LCD, display status& waveform.form.form.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC : 110V/220V/110~230V, 50/60Hz± 1Hz; 40VAHz; 40VAHz; 40VA
	DC : 14.4V(2000mAh) rechargeable Li-ion battery
Fuse	AC extend T500mA/125V 5x20mm AC extend T400mA/250V 5x20mm AC extend T2.0A/250V 5x20mm
