Three Channel ECG Machine

Three Channel ECG Machine

bargain

add to cart
Classification ECG
Certification CE, SGS
Channels Three Channel
Record Mode Manual Mode; Auto1; Auto2; Auto3
Transport Package Carton
Origin China
Type ECG
Medical Devices Reg./Record No. Ysyjxzz20072210057
Lead Standard 12 Leads
Trademark Maya
Specification digital three channel

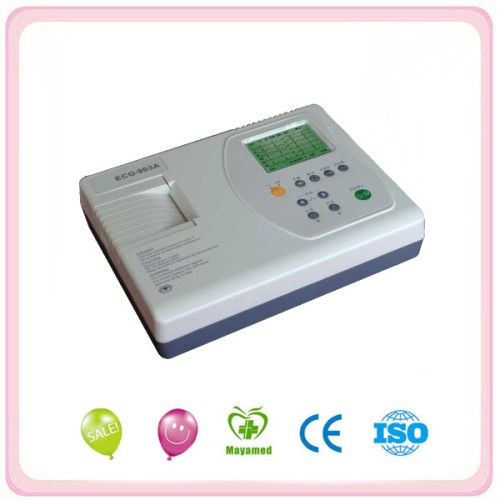

Three Channel ECG Machine:
three channel with interpretive
has 320X240 graphic LCD, 3.8 inch screen
with Simultaneous 12 leads
Dimension: 300mmX230mmX61mm
Packing: 375mmX295mmX195mm
Weight: 4.5kg(gross); 3.57kg(net)
Three channel with interpretive
Build in rechargeable Li battery
Chinese/English language
Simultaneous 12 leads
320X240 graphic LCD, 3.8 inch screen
Paper size: 63mmX20/30m
Built in RS232 interface (USB is optional)
128 patients save/copy/communication
Items specification
Lead standard 12 leads
lead acquisition synchronously 12 leads
Data acquisition 18bit/1000Hz
Record mode Manual mode; AUTO1; AUTO2; AUTO3
Filter AC, EMG, Drift Fliter
CMRR ≥ 100dB(with AC filter)ter)ter)
Input circuit Floating; Protection circuit against Defibrillator effect
Input circuit current ≤ 0.1μ A1μ A; A1μ A
Input Impedance ≥ 2.5MΩ.5MΩOmega;.5MΩ
Patient current leakage < 10μ A0μ A
Calibrating voltage 1mV± 2%usmn; 2%usmn; 2%
Voltage tolerance ± 500mVn; 500mVn; 500mV
Time constant > 3.2s
Frequency response 0.05 ~150Hz
Noise level ≤ 15μ Vp-pu; Vp-pu; Vp-p
Sensitivity valve ≤ 20μ V0μ V; V0μ V
Inter-Channel Interference ≤ 0.5mm.5mm.5mm
Paper speed 25. 50mm/s(± 3%)smn; 3%)smn; 3%)
Sensitivity AUTO, 2.5, 5, 10, 20mm/mV
Recording mode Thermal Array printing
Paper specification 63mmx30m, roll
LCD display . 320x240 graphic LCD, display status& waveform.form.form.
Safety classification IEC60601-1 class I, type CF
Power supply AC : 110V/220V/110~230V, 50/60Hz± 1Hz; 30VAHz; 30VAHz; 30VA
DC : 14.4V(2000mAh) rechargeable Li-ion battery
Fuse AC extend T500mA/125V ø 5x20mm; 5x20mm; 5x20mm
AC extend T400mA/250V ø 5x20mm; 5x20mm; 5x20mm
AC extend T2.0A/250V ø 5x20mm; 5x20mm; 5x20mm
