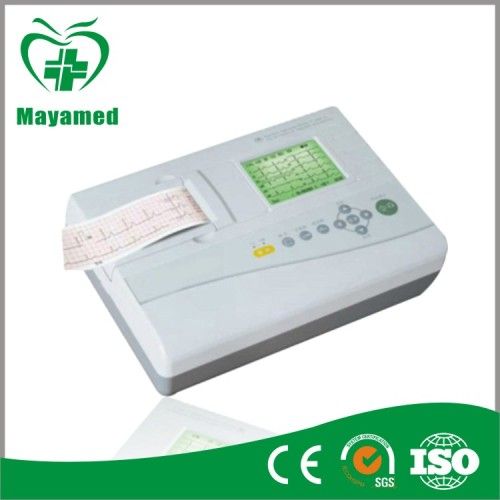

My-H001 Three Channel ECG Machine
bargain
add to cart| Model NO. | MY-H001 |
| Type | ECG |
| Channels | Three Channel |
| Transport Package | Carton |
| Origin | China |
| Classification | ECG Machine |
| Medical Devices Reg./Record No. | Ysyjxzz20072210057 |
| Trademark | Maya |
| Specification | digital three channel |
MY-H001 Three Channel ECG Machine
three channel with interpretive
build in rechargeable Li battery
with Simultaneous 12 leads
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
three channel with interpretive
build in rechargeable Li battery
with Simultaneous 12 leads
| Dimension: 300mmX230mmX61mm |
| Packing: 375mmX295mmX195mm |
| Weight: 4.5kg(gross); 3.57kg(net) |
| Three channel with interpretive |
| Build in rechargeable Li battery |
| Chinese/English language |
| Simultaneous 12 leads |
| 192X64 graphic LCD |
| Paper size: 63mmX20/30m |
| Built in RS232 interface (USB is optional) |
| Items | specification |
| Lead | standard 12 leads |
| lead acquisition | synchronously 12 leads |
| Data acquisition | 18bit/1000Hz |
| Record mode | Manual mode; AUTO1; AUTO2; AUTO3 |
| Filter | AC, EMGDrift Fliter |
| CMRR | ≥ 100dB(with AC filter)ter)ter) |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input circuit current | ≤ 0.1μ A1μ A; A1μ A |
| Input Impedance | ≥ 2.5MΩ.5MΩ.5MΩ |
| Patient current leakage | ﹥ 10μ A0μ A0μ A |
| Calibrating voltage | 1mV± 2%usmn; 2%usmn; 2% |
| Voltage tolerance | ± 500mVn; 500mVn; 500mV |
| Time constant | > 3.2s |
| Frequency response | 0.05 ~150Hz |
| Noise level | ≤ 15μ Vp-pu; Vp-pu; Vp-p |
| Sensitivity valve | ≤ 20μ V0μ V; V0μ V |
| Inter-Channel Interference | ≤ 0.5mm.5mm.5mm |
| Paper speed | 25 @ 50mm/s(± 3%)smn; 3%)smn; 3%) |
| Sensitivity | AUTO, 2.5, 5, 10, 20mm/mV |
| Recording mode | Thermal Array printing |
| Paper specification | 63mmx30m, roll |
| LCD display | 192x64 graphic LCD, display status& waveform.form.form. |
| Safety classification | IEC60601-1 class I, type CF |
| Power supply | AC : 110V/220V/110~230V, 50/60Hz± 1Hz; 30VAHz; 30VAHz; 30VA |
| DC : 14.4V(2000mAh) rechargeable Li-ion battery | |
| Fuse | AC extend T500mA/125V ø 5x20mm; 5x20mm; 5x20mm AC extend T400mA/250V ø 5x20mm; 5x20mm; 5x20mm AC extend T2.0A/250V ø 5x20mm; 5x20mm; 5x20mm |
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
