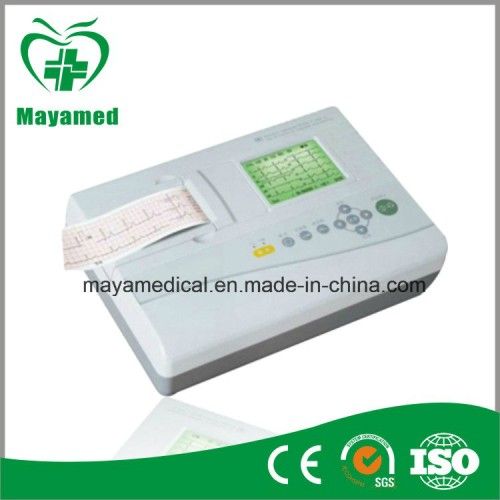

My-H001 Electrocardiograph Single Channel ECG Machine

My-H001 Electrocardiograph Single Channel ECG Machine

bargain

add to cart
Model NO. MY-H001
Type ECG
Channels Single Channel
Transport Package Carton
Origin China
Classification ECG Machine
Medical Devices Reg./Record No. Ysyjxzz20072210057
Trademark Maya
Specification digital single channel
Model number: Single channel ECG-901A
ECG-901A Single channel with measurement report
ECG-901A Build in rechargeable Ni-MH battery
ECG-901A Big screen
Dimension: 288mmX204mmX60mm
Packing: 380mmX300mmX210mm
Weight: 4.3kg(gross); 3.27kg(net)
Single channel with measurement report
Build in rechargeable Ni-MH battery
Chinese/English language
Simultaneous 12 leads
320X240 graphic LCD, 3.8 inch screen
Paper size: 50mmX20/30m
Built in RS232 interface (USB is optional)
8 Patients save/copy/communication
Items specification
Lead standard 12 leads
lead acquisition synchronously 12 leads
Data acquisition 18bit/1000Hz
Record mode Manual mode; Auto 1; Auto 2; Auto 3
Filter AC, EMG, Drift Filter
CMRR 100dB(with AC filter)
Input circuit Floating; Protection circuit against Defibrillator effect
Input circuit current ≤ 0.1μ A1μ A; A1μ A
Input Impedance ≥ 2.5MΩ.5MΩ.5MΩ
Patient current leakage < 10μ A0μ A
Calibrating voltage 1mV± 2%usmn; 2%usmn; 2%
Voltage Tolerance ± 500mVn; 500mVn; 500mV
Time constant > 3.2s
Frequency response 0.05 ~150Hz
Noisy level ≤ 15μ Vp-pu; Vp-pu; Vp-p
Sensitivity valve ≤ 20μ V0μ V; V0μ V
Inter-Channel Interference ≤ 0.5mm.5mm.5mm
Paper speed 25, 50mm/s(± 3%)smn; 3%)smn; 3%)
Sensitivity AUTO, 2.5, 5, 10, 20mm/mV
Recording mode Thermal Array printing
Paper specification 50mmx20m, roll
LCD display 320x240 graphic LCD, display status& waveform.form.form.
Safety classification IEC60601-1 class I, type CF
Power supply AC : 110V/220V/85~265V, 50/60Hz± 1Hz; 30VAHz; 30VAHz; 30VA
DC: 12V(1500mAh) rechargeable Ni-MH battery
Fuse AC extend T500mA/125V 5x20mm
AC extend T250mA/250V 5x20mm
AC extend T2.0A/250V 5x20mm

Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
