My-H001 Single Channel ECG

bargain

Model NO.	MY-H001
Type	Digital EEG/ECG/EKG/EMG/VCG
Medical Devices Reg./Record No.	Ysyjxzz20072210057
Lead	12 Leads
Trademark	Maya
Specification	CE
Classification	ECG Machine
Certification	CE, SGS
Channels	Single Channel
Data Acquisition	18bit/1000Hz
Transport Package	Carton
Origin	China

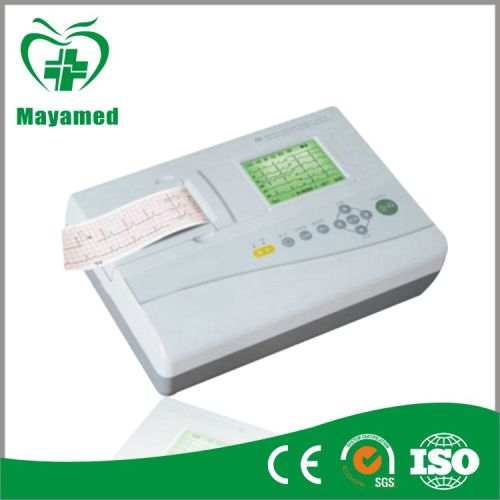

Model number: Single channel ECG MA-901
MA-901 Single channel with measurement report
MA-901Build in rechargeable Ni-MH battery
Dimension: 288mmX204mmX60mm
Packing: 380mmX300mmX210mm
Weight: 4.3kg(gross); 3.27kg(net)
Single channel with measurement report
Build in rechargeable Ni-MH battery
Chinese/English language
Simultaneous 12 leads
20X2 character LCD
Paper size: 50mmX20/30m

Specification
Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; Auto 1; Auto 2; Auto 3
Filter	AC, EMG, Drift Filter
CMRR	100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤ 0.1μ A1μ A; A1μ A
Input Impedance	≥ 2.5MΩ.5MΩ.5MΩ
Patient current leakage	< 10μ A0μ A
Calibrating voltage	1mV± 2%usmn; 2%usmn; 2%
Voltage Tolerance	± 500mVn; 500mVn; 500mV
Time constant	> 3.2s
Frequency response	0.05 ~150Hz
Noisy level	≤ 15μ Vp-pu; Vp-pu; Vp-p
Sensitivity valve	≤ 20μ V0μ V; V0μ V
Inter-Channel Interference	≤ 0.5mm.5mm.5mm
Paper speed	2550mm/s(± 3%)smn; 3%)smn; 3%)
Sensitivity	AUTO, 2.5, 5, 10, 20mm/mV
Recording mode	Thermal Array printing
Paper specification	50mmx20m, roll
LCD display	20x2 character LCD, display status.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC : 110V/220V/85~265V, 50/60Hz± 1Hz; 30VAHz; 30VAHz; 30VA
	DC : 12V(1500mAh) rechargeable Ni-MH battery
Fuse	AC extend T500mA/125V Ø 5x20mm; 5x20mm; 5x20mm AC extend T250mA/250V Ø 5x20mm; 5x20mm; 5x20mm AC extend T2.0A/250V Ø 5x20mm; 5x20mm; 5x20mm
