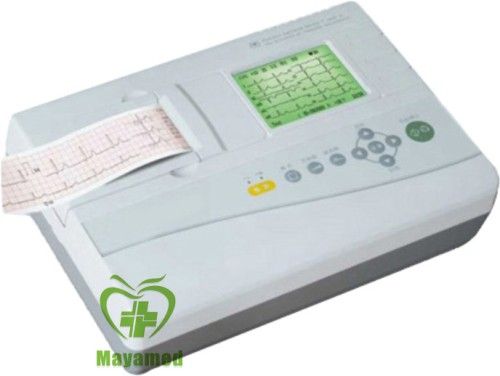

My-H001 Medical Single Channel ECG Machine
| Model NO. | MY-H001 |
| Type | Digital EEG/ECG/EKG/EMG/VCG |
| Data Acquisition | 18bit/1000Hz |
| Record Mode Manual Mode; | Auto 1; Auto 2; |
| Cmrr | 100db(with AC Filter) |
| Frequency Response | 0.05 ~150Hz |
| Trademark | MAYA |
| Specification | CE |
| Classification | Physiological Functions of Diagnosis and Monitoring Equipment |
| Medical Devices Reg./Record No. | Ysyjxzz20072210057 |
| Lead Acquisition | Synchronously 12 Leads |
| Filter | AC, Emg, Drift Filter |
| Voltage Tolerance | ±500mvsmn;500mvmn;500mv |
| Paper Speed | 25, 50mm/S(±3%)lusmn;3%)usmn;3%) |
| Transport Package | Carton Box for ECG |
| Origin | Guangzhou China |
Medical single channel ecg machine
Dimension:288mmX204mmX60mm
Packing:380mmX300mmX210mm
Weight:4.3kg(gross); 3.27kg(net)
Single channel with measurement report
Build in rechargeable Ni-MH battery
Chinese/English language
Simultaneous 12 leads
320X240 graphic LCD, 3.8 inch screen
Paper size: 50mmX20/30m
Built in RS232 interface (USB is optional)
8 Patients save/copy/communication
| Items | specification |
| Lead | standard 12 leads |
| lead acquisition | synchronously 12 leads |
| Data acquisition | 18bit/1000Hz |
| Record mode | Manual mode; Auto 1; Auto 2; Auto 3 |
| Filter | AC, EMG,Drift Filter |
| CMRR | 100dB(with AC filter) |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input circuit current | ≤0.1μA.1μAu;A.1μA |
| Input Impedance | ≥2.5MΩ.5MΩ.5MΩ |
| Patient current leakage | <10μA10μA |
| Calibrating voltage | 1mV±2%lusmn;2%lusmn;2% |
| Voltage Tolerance | ±500mVmn;500mVmn;500mV |
| Time constant | >3.2s |
| Frequency response | 0.05 ~150Hz |
| Noisy level | ≤15μVp-pmu;Vp-pmu;Vp-p |
| Sensitivity valve | ≤20μV20μVu;V20μV |
| Inter-Channel Interference | ≤0.5mm.5mm.5mm |
| Paper speed | 25,50mm/s(±3%)usmn;3%)usmn;3%) |
| Sensitivity | AUTO,2.5,5,10,20mm/mV |
| Recording mode | Thermal Array printing |
| Paper specification | 50mmx20m,roll |
| LCD display | 320x240 graphic LCD,display status&waveform.form.form. |
| Safety classification | IEC60601-1 class I, type CF |
| Power supply | AC : 110V/220V/85~265V,50/60Hz±1Hz;30VA1Hz;30VA1Hz;30VA |
| DC :12V(1500mAh) rechargeable Ni-MH battery | |
| Fuse | AC extend T500mA/125V ¢5x20mm5x20mm5x20mm AC extend T250mA/250V ¢5x20mm5x20mm5x20mm AC extend T2.0A/250V ¢5x20mm5x20mm5x20mm |
