Application
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.
Display

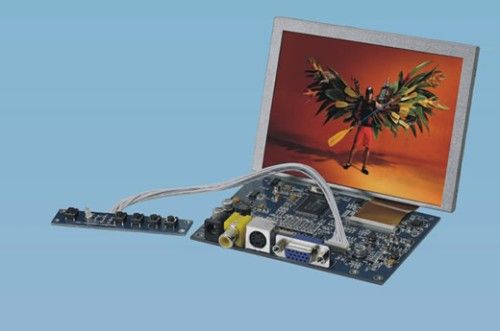

Desciption: 5' LCD Touch SKD Module for Industrial Control Applicationcation
Model: 5-SKD
Brightness: 200 cd/ m2
Touch Screen: 4 Wire Resistive Touch
Touch Interface: USB&RS232 (optional)onal)onal)
Dot Resolution: 640x480 pixels (up to1920×1440)s;1440)s;1440)
Contrast Ratio: 500:1
Aspect Ratio: 4:3
Backlight: LED
Dot pitch: 0.0529(w) ×0.1587(H)mm87(H)mm87(H)mm
Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)deg;/70°(U/D)U/D)deg;/70°(U/D)
Input
Signal: VGA,.AV1,AV2,HDMI,DVI
Input Voltage: DC12V±15%lusmn;15%usmn;15%
Power
Power Consumption: 6W
Environment
WorkTemperature: -20ºC~60ºCC~60ºCrdm;CC~60ºC
Installation Method: SKD
Store Temperature: -30ºC~70ºCC~70ºCrdm;CC~70ºC
Dimension
Screen Size: 117.65(W)X88.43(H)X5.7(H) mm
PCB Size: 145(L)X70(W)mm
Unit Weight: 280g
