Application

Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.

Display

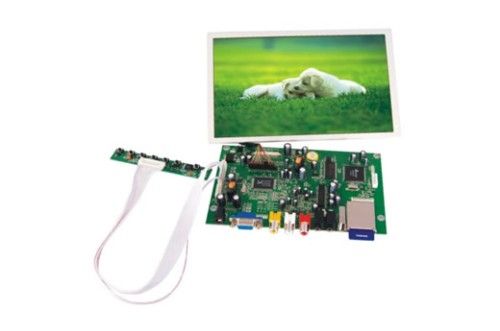

Desciption 8.9' LCD SKD Module for Industrial Applicationcation
Model: 8.9-SKD
Brightness: 220 cd/ m2
Touch Screen: 4 & 5Wire Resistive Touch(optional)onal)onal)
Touch Interface: USB&RS232 (optional)onal)onal)

Dot Resolution: 1024×600pixels (up to1920×1440)0×1440);1440)0×1440)
Contrast Ratio: 500:1

Aspect Ratio: 17:10
Backlight: LED
Dot pitch: 0.1905(W)*0.189(H)mm
Viewing Angle: 65°/65°(L/R) 40°/60°(U/D)deg;/60°(U/D)U/D)deg;/60°(U/D)
Input

Input Signal: VGA,AV,Audio R.in&L.in,Audio in&out,S-video,,S-video,,S-video,
Power

Power Consumption: 8W

Input Voltage: DC9-15V
Environment

WorkTemperature: -20ºC~60ºCC~60ºCrdm;CC~60ºC

Installation Method: SKD
Store Temperature: -30ºC~70ºCC~70ºCrdm;CC~70ºC

Dimension

Screen Size: 210(W) × 127.8(H) × 5.2(D)mmmes; 5.2(D)mmmes; 5.2(D)mm
PCB Size: 167(L)×86(W)mm86(W)mm86(W)mm
Unit Weight: 530g
