Application
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.
OS Support for touch
Windows XP
Windows NT4
Window 9X/ME
Win CE
MAC
MS-DOS
Linux
Display
Desciption 5.6' LCD SKD Module for Industrial Applicationcation
Model: 5.6-SKD
Brightness: 200 cd/ m2
Touch Screen: 4Wire Resistive Touch
Touch Interface: USB&RS232 (optional)onal)onal)
Dot Resolution: 640x480 pixels (up to1920× 1440); 1440); 1440)
Contrast Ratio: 500: 1
Aspect Ratio: 4: 3
Backlight: LED
Dot pitch: 0.0588(W)X0.1764(H) mm
Viewing Angle: 70° /70° (L/R) 50° /70° (U/D)g; /70° (U/D)U/D)g; /70° (U/D)
Input
Signal: VGA x1, . AV1, AV2, HDMI x1, DVI x1
Power
Power Consumption: 6W
Input Voltage: DC12V± 15%smn; 15%smn; 15%
Environment
WorkTemperature: -20º C~60º C~60º Cdm; C~60º C
Store Temperature: -30º C~70º C~70º Cdm; C~70º C
Installation Method: SKD

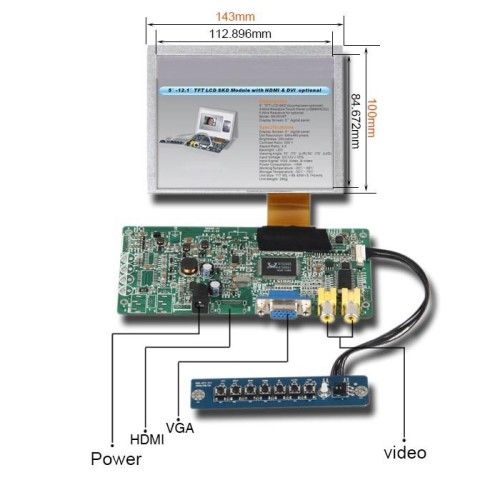

Dimension
Screen Size: 143(L)x100(W)x23(H)mm
PCB Size: 145(L)x70(W)mm
Unit Weight: 280g
