Application
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.
Display

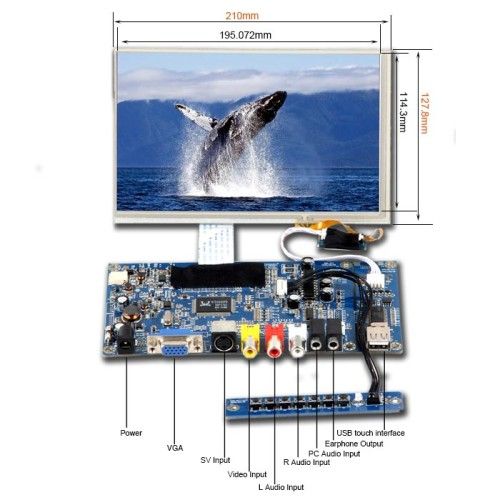

Desciption 8.9' LCD SKD Module for Industrial Applicationcation
Model: 8.9-SKD
Brightness: 220 cd/ m2
Touch Screen: 4 & 5Wire Resistive Touch(optional)onal)onal)
Touch Interface: USB&RS232 (optional)onal)onal)
Dot Resolution: 1024× 600pixels (up to1920× 1440)× 1440) 1440)× 1440)
Contrast Ratio: 500: 1
Aspect Ratio: 17: 10
Backlight: LED
Dot pitch: 0.1905(W)*0.189(H)mm
Viewing Angle: 65° /65° (L/R) 40° /60° (U/D)g; /60° (U/D)U/D)g; /60° (U/D)
Input
Input Signal: VGA, AV, Audio R. In&L. In, Audio in&out, S-video, S-video, S-video,
Power
Power Consumption: 8W
Input Voltage: DC9-15V
Environment
WorkTemperature: -20º C~60º C~60º Cdm; C~60º C
Installation Method: SKD
Store Temperature: -30º C~70º C~70º Cdm; C~70º C
Dimension
Screen Size: 210(W) × 127.8(H) × 5.2(D)mmmes; 5.2(D)mmmes; 5.2(D)mm
PCB Size: 167(L)× 86(W)mm86(W)mm86(W)mm
Unit Weight: 530g
