Application
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.
Display

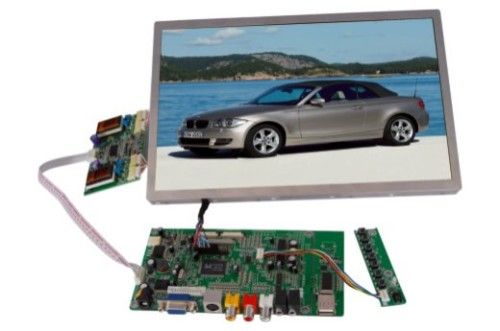

Desciption 12.1' LCD SKD Module for Industrial Applicationcation
Model: 12.1-SKD
Brightness: 450 cd/ m2
Touch Screen: 4 &5 Wire Resistive Touch(optional)onal)onal)
Touch Interface: USB&RS232 (optional)onal)onal)
Dot Resolution: 1280*800 pixels (up to1920× 1440); 1440); 1440)
Contrast Ratio: 350: 1
Aspect Ratio: 16: 9
Backlight: CCFL (LED optional)
Dot pitch: 0.204(W) x 0.204(H) mm
Viewing Angle: 0.204(W) x 0.204(H) mm
Inputs
Input Signal: VGA, AV, Audio R. In&L. In, Audio in&out, S-video, S-video, S-video,
Power
Input Voltage: DC12V± 15%smn; 15%smn; 15%
Power Consumption: 23W
Environment
WorkTemperature: -20º C~60º C~60º Cdm; C~60º C
Store Temperature: -30º C~70º C~70º Cdm; C~70º C
Installation Method: SKD
Dimension
Screen Size: 275.8(W) x 178.0(H) x 5.5(H)mm
PCB Size: 167(L)× 86(W)mm86(W)mm86(W)mm
Unit Weight: 1500g
