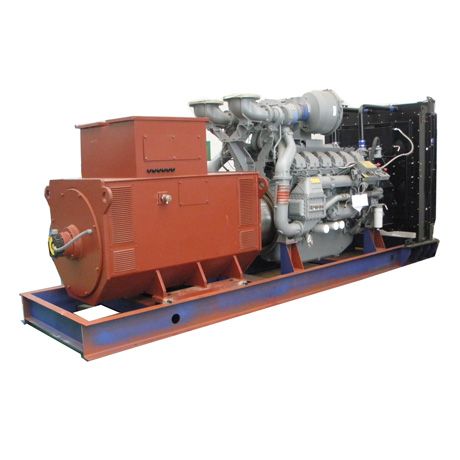

11kv High Voltage Silent Diesel Generator Set 1000kw
| Model NO. | HPM1375-HV11 |
| Installation Method | Fixed |
| Cooling Method | Water Cooling |
| Warranty | 1 Year or 1000 Working Hours |
| Trademark | Honny |
| Origin | China |
| Type | Self-Starting Diesel Generator |
| Stroke | Four Stroke |
| Certificates | CE, ISO, SGS, TUV, etc |
| Options | ATS, Fuel Tank, Parallel, Canopy |
| Specification | ISO8528 |
| HS Code | 8502131000 |
11kV High Voltage Silent Diesel Generator Set 1000kW
1. Rating frequency 50Hz, 1500RPM, Voltage 400/230V(adjustable)
2. Diesel engine is 4012-46TWG2A
3. Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
4. Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
5. Control system will use GCS6410 AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection fuction, or as required.uired.ired.
6. Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual. Others are optional.ional.onal.
1. Rating frequency 50Hz, 1500RPM, Voltage 400/230V(adjustable)
2. Diesel engine is 4012-46TWG2A
3. Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
4. Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
5. Control system will use GCS6410 AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection fuction, or as required.uired.ired.
6. Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual. Others are optional.ional.onal.
| Genset Model | HPM1375 |
| Rating Power (kw/kva) | 1000/1250 |
| Standby Power (KW/KVA) | 1100/1375 |
| Rating Ammeter(A) | 1804 |
| Engine Model | 4012-46TWG2A |
| Prime Power (KW) | 1097 |
| Standby Power (KW) | 1207 |
| Bore X Stroke (mm) | 160X190 |
| Number of Cylinder & Configurationationation | 12V |
| Displacement(1) | 45.8 |
| Compression Ratio | 13.6:1 |
| Aspiration | Turbocharged & after-cooledooledooled |
| Max. intake depression(mbar) | 6 |
| Combustion air Volume(m³/min);/min);/min) | 91 |
| Max. Exhaust back Pressure (mbar) | 10 |
| Exhaust Gas Flow(m³/min);/min);/min) | 245 |
| Cooling | Water cooled with Radiator |
| Fan cooling air flow(m³/min);/min);/min) | 1380 |
| Total Coolant capacity(l) | 235 |
| Total oil capacity(l) | 178 |
| Rating Fuel Consumption(l/h) | 265 |
| Governing Type | Electrics Governor |
| Rating Voltage(V) | 400/230 |
| Alternator Model | MX-1030-4 |
| Rating Capacity (KW/KVA) | 1030/1287.5 |
| Eff.% | 95.2% |
| Power Factor | 0.8 lagged |
| Exciting type | PMG, DVR |
| Voltage regulation | ±0.25%mn;0.25%mn;0.25% |
| No. of Phase | 3 phase 4 wire |
| Enclosure Class | IP22 |
| Class of Insulation | H |
| Control Module | DSE560 Auto Start Module UKDEEP SEA |
| Rating Capacity(AH) | 4X150AH 12V |
| Generator set dimension (L×W×H)es;W×H)mes;H)es;W×H) | 5200x2080x2520 mm |
| Generator Weight (kg) | 10500 |
| Soundproof Canopy (40HQ) | 12192X2438X2896mm |
| Noise at 7m around the canopy | 73dBA |
