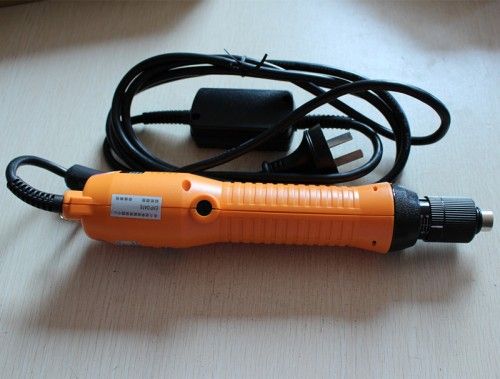

Taiwan KILEWS Kellett speed automatic electronic push-type electric torque screwdriver P1L-SK-9250P
Product parameters:
- Processing customization: No
- Type: screwdriver
- Brand: KILEWS
- Model: P1L-SK-9250P
- Weight: 0.5
- Maximum torque: 15 ~ 45
- Drive shaft / chuck: 000
- Power supply voltage: 220V
product manual:
- Torque range up to 5 ~ 45kgf.cm (large torque)
- Torque stability, accuracy of 3% under pressure, a pressure to start
- The torque can be adjusted and the torque can be fixed with the retaining ring (KC-1)
- Large torque can be installed to support the use of guns
- The most suitable for computer chassis and tapping screws
- The SK9 series complies with the UL, CUL and CE standards
- SK-9140PF, SK-9240PF models, torque 30kg, r.p.m. 1000 turn, specifically applicable
- Lock the self-tapping screw of the display housing.
model | P1L-SK-9230P | P1L-SK-9240P | P1L-SK-9250P | P1L-SK-9230PF | P1L-SK-9240PF | |
Input voltage | AC220 ~ 240V 50 / 60Hz | |||||
Torque | (Kgf.cm) | 5~22 | 10~30 | 15~45 | 4~17 | 10~30 |
(Lbf.in) | 4.4-19.36 | 8.8-26.4 | 13.2-39.6 | 3.52-14.86 | 8.8-26.4 | |
(N.m) | 0.49-2.16 | 0.98-2.94 | 1.47-4.41 | 0.39-1.67 | 0.98-2.94 | |
Torque accuracy(%) | ±3% | ±3% | ±3% | ±3% | ±3% | |
Torque adjustment | No paragraph | No paragraph | No paragraph | No paragraph | No paragraph | |
Empty speed (R.p.m) | 1000 | 700 | 500 | 1900 | 1000 | |
No load current(A) | 0.3A | 0.3A | 0.3A | 0.3A | 0.3A | |
Applicable screw diameter | Mechanical teeth | 2.6~4.0 | 3.0~5.0 | 4.0~6.0 | 2.3~4.0 | 3.0~5.0 |
Self-tapping | 2.0~3.5 | 3.0~4.0 | 3.0~5.0 | 2.3~3.5 | 3.0~4.0 | |
weight(g) | 700 | 700 | 700 | 700 | 700 | |
length (Mm) | 269 | 269 | 269 | 269 | 269 | |
