Bs5000, VDE0530, NEMA Mg1-32, IEC34, IEC60034, As1
Controller
Harsen, Deep Sea, Datakom, etc.
Trademark
Honny
Origin
Guangdong, China
Type
Self-Starting Diesel Generator
Stroke
Four Stroke
Output Type
AC Three Phase
Types
High Voltage
Application Area
Power Plant, High Voltage, Black Start
Engine Standard
ISO9001, GB/T2820-97, ISO8528
Engine Model
Googol Qta2160g7
Load Mode
Fixed Output or Auto Load Sharing
Specification
ISO8528
HS Code
85021300

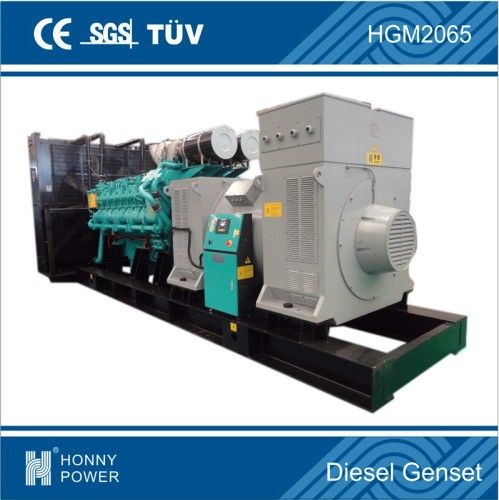

800kW-2400kW Power set Diesel Generator 6 kV Cummins High voltage series generator sets, power range is from 800kVA to 5000kVA, standard voltage or high voltage generating system. Enigne Brand: Perkins engine, Cummins engine, Googol engine, CSR engine Alternator voltage: 3300V, 6300V, 10500V, 3600V, 6600V, 11000V, 13800V Frequency: 50Hz or 60Hz Speed: 1500rpm, 1800rpm, 1200rpm, 1000rpm according to the engine brand Performance Feature: Engine and alternator shall be mounted on a same frame steel skid. Small size, low weight, easy to operating, installation and maintenance. Good Quality diesel engine. World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC, Engga. Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 Full range protect function and alarm shutdown feature. Standard Control System: Deepsea 7320 AMF Mains 3 phases VPh-N L1-N L2-N L3-N Mains 3 phases VPh-pH L1-L2 L2-L3 L3-L1 Mains frequency Hz (L1) Gen 3 phases VPh-N L1-N L2-N L3-N Gen 3 phases VPh-pH L1-L2 L2-L3 L3-L1 Gen 3 phases current I1 I2 I3 Gen frequency Hz (L1) Gen total apparent power ∑ Aum; Aum; A Gen total active power ∑ Pum; Pum; P Gen power factor PF (AV) Genset speed RPM (signal from generator voltage frequency) Engine oil pressure Bar (signal from engine P-sensor) Engine coolant temperature (signal from engine T-sensor) Battery voltage VDC Genset Running hour Hour Standard Accessory: Common steel base frame, anti-vibrator, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document. Optional Accessory: Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS and paralleling system, Soundproof Canopy and Moving Trailer. Usage: Power plant, black start, emergency standby, large factory, data center, mining plant Let's achieve our goal together, Using power to kindle the dream of human.
