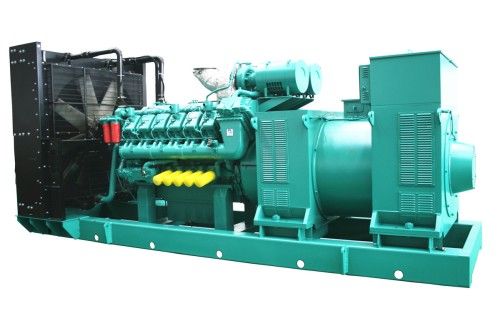

Googol Engine Medium and High Voltage Diesel Generator 50Hz 500kw-2400kw
| Model NO. | HGM688-HGM3300 |
| Installation Method | Fixed |
| Cooling Method | Water Cooling |
| Speed | Speed |
| Usage | Common Units |
| Excitation Mode | AC Rotating Exciter |
| Voltage Range | 3kv-13.8kv |
| Application Area | Power Plant, High Voltage, Black Start |
| Alternator Standard | Bs5000, VDE0530, NEMA Mg1-32, IEC34, IEC60034, As1 |
| Controller | Deif, Deep Sea, Comap, etc |
| Alternator | Marathon, Engga, Leroy Somer, Mecc Alte |
| Specification | ISO8528 |
| HS Code | 85021300 |
| Type | Self-Starting Diesel Generator |
| Stroke | Four Stroke |
| Output Type | AC Three Phase |
| Conditions of Use | Land Use |
| Landuse Type of Unit | Low Noise |
| Frequency&SpeedSpeedSpeed | 50Hz&1500rpm500rpm00rpm |
| Warranty | 1 Year or 1000hours |
| Engine Standard | ISO9001, GB/T2820-97, ISO8528 |
| Engine Model | Googol High Voltage Diesel Engine |
| Load Mode | Fixed Output or Auto Load Sharing |
| Trademark | Honny |
| Origin | Guangdong, China |
Googol Engine Medium and High Voltage Diesel Generator 50Hz 500kW-2400kW
Googol High voltage series generator sets, power range is from 800kVA to 5000kVA, standard voltage or high voltage generating system.
Enigne Brand: Perkins engine, Cummins engine, Googol engine, CSR engine
Alternator voltage: 3300V, 6300V, 10500V, 3600V, 6600V, 11000V, 13800V
Frequency: 50Hz or 60Hz
Speed: 1500rpm, 1800rpm, 1200rpm, 1000rpm according to the engine brand
Performance Feature:
Engine and alternator shall be mounted on a same frame steel skid.
Small size, low weight, easy to operating, installation and maintenance.
Good Quality diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC, Engga.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
Standard Control System: Deepsea 7320 AMF
Mains 3 phases VPh-N L1-N L2-N L3-N
Mains 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Mains frequency Hz (L1)
Gen 3 phases VPh-N L1-N L2-N L3-N
Gen 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Gen 3 phases current I1 I2 I3
Gen frequency Hz (L1)
Gen total apparent power ∑ Aum; Aum; A
Gen total active power ∑ Pum; Pum; P
Gen power factor PF (AV)
Genset speed RPM (signal from generator voltage frequency)
Engine oil pressure Bar (signal from engine P-sensor)
Engine coolant temperature (signal from engine T-sensor)
Battery voltage VDC
Genset Running hour Hour
Standard Accessory:
Common steel base frame, anti-vibrator, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory:
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS and paralleling system, Soundproof Canopy and Moving Trailer.
Usage: Power plant, black start, emergency standby, large factory, data center, mining plant
Let's achieve our goal together, Using power to kindle the dream of human.
Googol High voltage series generator sets, power range is from 800kVA to 5000kVA, standard voltage or high voltage generating system.
Enigne Brand: Perkins engine, Cummins engine, Googol engine, CSR engine
Alternator voltage: 3300V, 6300V, 10500V, 3600V, 6600V, 11000V, 13800V
Frequency: 50Hz or 60Hz
Speed: 1500rpm, 1800rpm, 1200rpm, 1000rpm according to the engine brand
Performance Feature:
Engine and alternator shall be mounted on a same frame steel skid.
Small size, low weight, easy to operating, installation and maintenance.
Good Quality diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC, Engga.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
Standard Control System: Deepsea 7320 AMF
Mains 3 phases VPh-N L1-N L2-N L3-N
Mains 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Mains frequency Hz (L1)
Gen 3 phases VPh-N L1-N L2-N L3-N
Gen 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Gen 3 phases current I1 I2 I3
Gen frequency Hz (L1)
Gen total apparent power ∑ Aum; Aum; A
Gen total active power ∑ Pum; Pum; P
Gen power factor PF (AV)
Genset speed RPM (signal from generator voltage frequency)
Engine oil pressure Bar (signal from engine P-sensor)
Engine coolant temperature (signal from engine T-sensor)
Battery voltage VDC
Genset Running hour Hour
Standard Accessory:
Common steel base frame, anti-vibrator, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory:
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS and paralleling system, Soundproof Canopy and Moving Trailer.
Usage: Power plant, black start, emergency standby, large factory, data center, mining plant
Let's achieve our goal together, Using power to kindle the dream of human.
