ITEM

Description

Conductor

material

Bare copper

Construction

24AWG (1/0.50)

O.D.

0.5 mm±0.02mm

Insulation

Material

HD-PE

Thickness

0.269MM±0.05mm

O.D.

0.975MM±0.03mm

Elongation

Min. 300%

tensile

Min. 1.22kg/ mm

Twist Pair

N/ A

color

function

1. BlueWhite / Blue

Unused Unused

2. OrangeWhite / Orange

Transmit Data +

Transmit Data-

3. GreenWhite / Green

Receive Data +

Receive Data-

4. Brown White / Brown

Unused Unused

Remark : Network cabling comprises of four pairs of wires, only two pairs are normally used. Despite this, all the pairs should always be wired to maintain the network specification. The cable pair colors, pair numbers and wire descriptions are shown in the table

jacket

Material

PVC

Thickness

0.615mm±0.1mm

O. D .

5.2mm±0.3mm

Color

According to customer's requirement

Elongation

Min. 125%

tensile

Min. 1.41kg/ mm

weight

8.7kgs/ 305m

package

packing

1000FT/ 305M per box or as customer's requirement

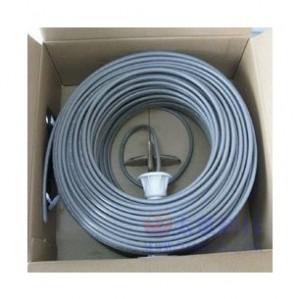

Package

Easy pull out box / wooden drum or as customer's requirement

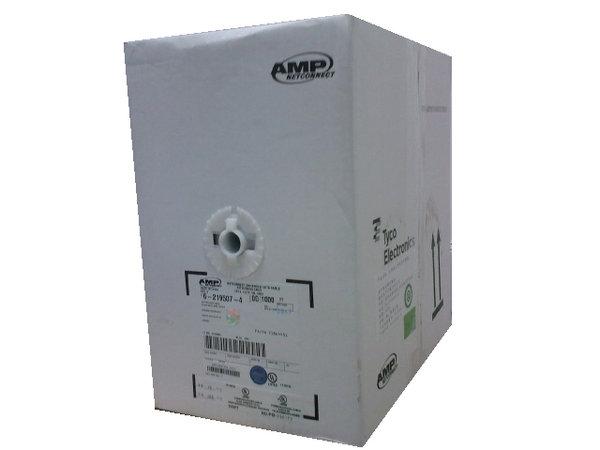

Boxes size

Ineer box

Outer box (two ineer box in one outer box)

34.5*34.5*19.5CM

41*35.8*36CM

Application

100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM
