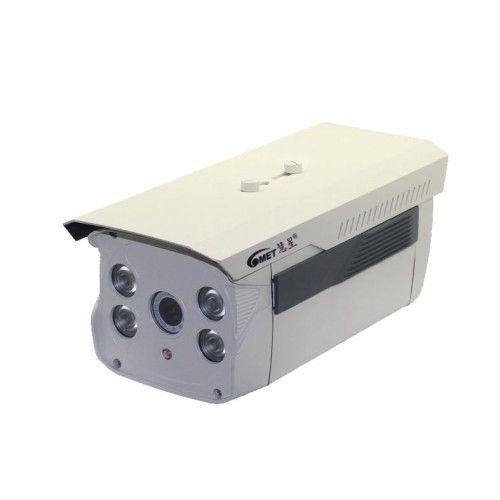

| Model NO. | HX-I6020F4L |
| Style | Bullet Camera |
| Sensor | CMOS |
| Kind | Fixed Board Lens |
| TV System | PAL/NTSC |
| IR Distance | 80m |
| Material | Metal |
| Power Supply | DC 12V/2A |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Technology | Infrared |
| Type | IP Camera |
| Horizontal Resolution | 1080P(1920*1080) |
| Feature | Waterproof / Weatherproof, High Definition |
| IR LED | 4PCS Array LEDs |
| Lens | 6mm, 8mm, 12mm Lens Optional |
| Color | White |
| Export Market | Global |
| Specification | CE, FCC, SGS |
| HS Code | 8525801390 |
Image sensor: 1/2.5' SensorSensor
Effective Pixels: 1920(H)X1080(V)
Electronic Shutter: Auto/Manual 1/50(1/60)~1/100, 000 sec
Mini. Illumination: 0Lux( LED ON) 01Lux(LED OFF)
Signal Noise Ratio: ﹥48dB48dB
White Balance: AUTO
Lens Mount: 4/8/12/16mm optional, auto iris
Double Noise reduction: SUPPORT
Video:
Video Compression: H. 264/ Main Profile@Level 3.0 / MJPEG
Image Resolution: 1080P (1920*1080),Video Format: PAL/NTSC
Frame Rate: Max 25fps(PAL) Max 30fps (NTSC)
Audio: G. 711A
Network:
Ethernet: RJ-45(10M/100M), RS485
Network Functions: TCP/ IP HTTP ARP TCP ICMP DHCP USP SMTP FTP DDNS RTSP ONVIF
Functions:
Motion Detection Technology: SUPPORT
Cryptoguard: SUPPORT
On Screen-display Technology: SUPPORT
The plug-and-play Function: SUPPORT
ONVIF protocol: SUPPORT
Environmental:
Power Supply: DC 12V 2A
IR Distance: 80m
Operating Environment: 0 dgree ~55 degrees
Ambient Humidity: ≤ 95% NO CONDENSATIONTIONTION
Dimension: 225mm(L)× 130mm(W)× 110mm(H)mes; 110mm(H)mes; 110mm(H)
Weight: 900g
