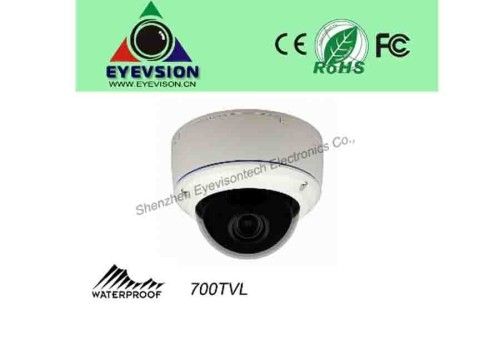

Web Indoor Surveillance Camera Wired, Commercial Security Cameras

Web Indoor Surveillance Camera Wired, Commercial Security Cameras

bargain

add to cart
Model NO. EV-673N35D
Style Dome Camera
Sensor CCD
Horizontal Resolution 700tvl
Certification CE, FCC, RoHS
Effective Distance 10-30m
Remote Control Without Remote Control
Transport Package Paper Packaging
Origin Shenzhen
Technology Infrared
Type CCTV Camera
HDMI Format 960h
Kind Manual Focus Lens
Feature High Definition, Auto BLC
Sensor Size 1/3 inch
Trademark Eyevison
Specification 10*10*10CM
HS Code 8525801390

Web Indoor Surveillance Camera Wireless , Commercial Security Cameras
Quick Detail:
1. 1/3' SONY Super HAD CCD II CCD II
2. Horizontal Resolution: 700 TVL
3. Lens:2.8-12mm Manual Zoom Lens
4. Effective Picture Element(HxV): P:967(H)X494(V) N:960(H)X582(V)
5. vandalproof;waterproof
Products Description:
1. Using high-performance COMOS image sensor with milions of pixels resolution.
2. Support the switch output between HD and SD ,making the transmission in HIGH speed,long distance and real-time
3. Using the imported materrials MSCG cover makes the light more uniform and the transmission strong
4. Fully support coaxial transmission of High definition vedeo and control signals,also support the common 75-3 Coaxialline lossless transmission for more than 500M
6. Support 3D noise reduction, having the superior performance of low illumination

Technical Parameters :

Model
EV-673N35D

Pick up Element
1/3' SONY Super HAD CCD IICCD II

Effective Picture Element(HxV)
P:967(H)X494(V) N:960(H)X582(V)

Horizontal Resolution
700 TVL

Minimum Illumination
0.001 Lux 0Lux(with IR LED ON)

S/N Ratio
More than 50db

Scanning System
2:1 Interface

Auto Electronic Shutter
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s

Video Output
1Vpp, 75Ohm

Power / Current
DC12V(+/-10%)/400mA

Lens
2.8-12mm Manual Zoom

Dimension(mm)
117(D)x100(H)

Weight(g)
800

Storage Temperature
-30~+60°C RH95% MAX% MAX% MAX

Operating Temperature
-10~+45°C RH95% MAX% MAX% MAX

AHD camera can be directiy connected to CRT display through coaxial cable,image display.HDCVI camera connects the monitor directly by coaxial cable,no image (black screen).HDCVI camera by connecting HDCVI VCR,HDCVI hard disk vedio recorder HDMI output to the LCD display,the image is normai.So it seems,AHD the camera has 960h output modes,very convinent for debugging.And 1mp AHD camera image effect and annlog cameras effet is not obvious difference,so AHD the camera output 960h signal can reflect the effect of 720p
