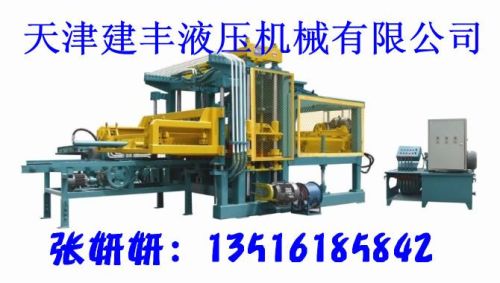

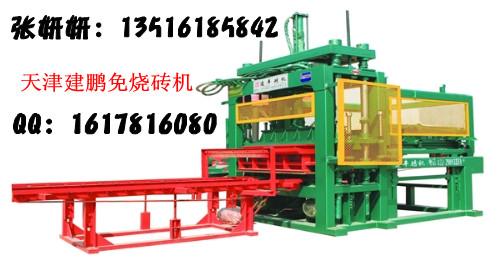

JF-QT5-20B multifunction shock compression ceramic tile production line:

(A) the specific configuration

(Ii) the main technical parameters:

No.

project

parameter

1

Shock shock force

78KN

2

Vibration frequency

5000 / min

3

Amplitude

15mm

4

noise

95db

5

Vibration time

6 seconds / times

6

Dimensions

4300 * 2100 * 2500 (mm)

7

Capacity

24.2KW

8

Total Weight

8 tons

9

Maximum pressure

10 tons

10

Pallet size

1150 * 570 * 20 (mm)

11

Operation number

8 people

12

Land area

≥4000m2

(C) applies brick and yield:

Product specification (L * W * H) mm

Forming blocks

Production cycle

Output per hour

Standard bricks 240 * 115 * 53 (mm)

32

20 seconds / times

5760

Hollow brick 390 * 190 * 190 (mm)

5

20 seconds / times

900

Porous brick 240 * 115 * 90 (mm)

16

20 seconds / times

2880

Bread brick 100 * 200 * 60 (mm)

20

20 seconds / times

3600

(Iv) Features:

1. Unique air-cooled technology, making more stable operation of the equipment.

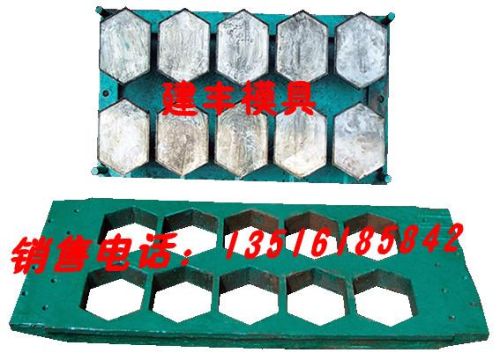

2. The mold can be changed to achieve diversification of one machine.

3. equipment overall, greatly improving the degree of mechanization, saving human resources.

4. Forced mold synchronous structure to ensure consistency of product thickness, smooth release, high yield.

5. The device system can be upgraded to automatic equipment.
