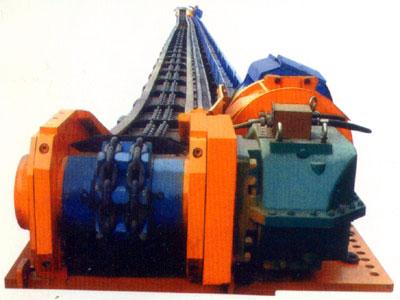

Scraper conveyor

Scraper conveyor is mainly used for mechanized mining face in other places or trough scraper conveyor transport body low, accounting for a small space; can be horizontal bend, and goes with the movement of the shearer, reduced roof control distance; can be bent vertically, can compensate for uneven floor; high structural strength, able to adapt to coal mining face harsh working environment; Shearer orbit can be made, but also doubles as a fulcrum of the time frame, the passage of transport When the machine, shovel coal board can automatically clean track float coal; block of coal plates may increase the loading of coal off the area, preventing coal thrown into the mined-out area scraper conveyor is a fully mechanized coal face necessary transport equipment.

Main technical characteristics

model	Ledge height (mm)	Design Length (m)	Throughput (t / h)	Chain speed (m / s)	Ring Chain Size (mm)	Central groove width (mm)	Reducer ratio	Motor power (kw)
SGZ630 / 110	197	150	400	0.93	22*86	630	29.362	110
SGZ630 / 220	232	180	450	0.93	22*86	860	29.362	2*110
SGZ630 / 264	252	180	450	0.93	26*92	1104	39.737	2*132
SGZ730 / 320	270	180	600	0.93	26*92	688	38.825	2*160
SGZ730 / 400	275	200	700	0.99	26*92	688	36.737	2*200
SGZ764 / 500	275	240	900	0.93	26*92	724	38.825	2*250
SGZ764 / 500	317	220	900	0.93	26*92	724	38.825	2*250
SGZ830 / 800	315	200	1200	1.3	34*126	770	33.16	2*400
SGZ800 / 800	315	250	1500	1.31	34*126	800	38.25	2*400
SGZ960 / 750	310	250	1800	1.31	34*126	900	33.16	2*375
