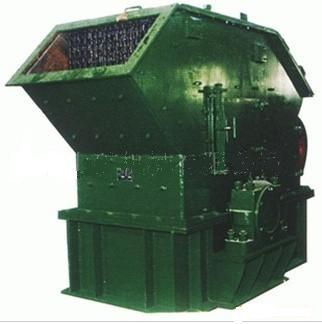

Reversible impact hammer Crusher

Application:

Used for crushing medium hard brittle material; Such as coal and other brittle material, etc; Size 80mm; Leaves the material granularity 8mm; (3mm, 93%., a granule can be adjusted according to the conditions and requirements of users, the device itself has a function. this machine is a circulating fluidized bed boiler coking plant, the best choice for iron and coal.

Working principle:

PCFK-reversible impact hammer Crusher with high speed rotation of hammerhead, the coals into the crusher break, and rushed to the back plate, in the course of repeated clashes, to crushing purposes. Counterattack plate of two curved suspension body material is broken, middle of the plate from the back end out, doesn't normally happen without the overload shutoff. It absorbed the most advanced structural design made. Rotor shaft equipped with manual turning device.

Description:

Common type of reversible combination rotary hammer, hammer rod is stainless steel forging manufacture, high wear-resistant alloy for Hammer, counterattack and liners are made of alloy steel, wear-resistant parts for 6,000-10,000 hours. Case for bi-directional opening, usually artificial opening, according to user requirements can be equipped with hydraulic opening. After a case is opened, maintenance and replacement of wearing parts is extremely convenient. Common type is not equipped with hydraulic opening device. Chronicles is equipped with vibration absorber for users to choose, plus dynamic vibration absorber can reduce the load 80%.

Impact plate for tooth-shaped, moisture is too large of coal, after the impact plate can be equipped with heating device. Heater hot oil or steam available of heating coal machine flow smoothly without plug, ensuring coal output and size stability. Heater configurations according to customers ' requirement, water is less than 14% to be equipped with.

PCFK-reversible impact hammer Crusher can be equipped with inverter and downtime situations according to the material hardness and grain size, adjust the speed of the hammer, and size to reach the peak. Equipped with a frequency converter can power more than 30%, achieve optimal soft start.

Technical parameters:

Specifications: PCFK1608

Crushing material: coal

Feed size (mm): 80

Leaves the material granularity (mm): 8 ((3 93%)

Capacity (t/h): 80~120

Model of motor: YKK4006-8

Power (kW): 220

Rotational speed (r/min): 740

Voltage (v): 6000

Fluid coupling model: YOX875

Specifications: PCFK1612

Crushing material: coal

Feed size (mm): 80

Leaves the material granularity (mm): 8 ((3 93%)

Capacity (t/h): 130~180

Model of motor: YKK405S-8

Power (kW): 355

Rotational speed (r/min): 740

Voltage (v): 6000

Fluid coupling model: YOX1000

Specifications: PCFK1616

Crushing material: coal

Feed size (mm): 80

Leaves the material granularity (mm): 8 ((3 93%)

Capacity (t/h): 200~300

Model of motor: YKK560-8/YKK500-8

Power (kW): 450

Rotational speed (r/min): 740

Voltage (v): 6000/10000

Fluid coupling model: YOX1000

Specifications: PCFK1618

Crushing material: coal

Feed size (mm): 80

Leaves the material granularity (mm): 8 ((3 93%)

Capacity (t/h): 300~400

Model of motor: YKK560-8

Power (kW): 560630710

Rotational speed (r/min): 740

Voltage (v): 6000/10000

Fluid coupling model: YOX1150

Specifications: PCFK1818

Crushing material: coal

Feed size (mm): 80

Leaves the material granularity (mm): 8 ((3 93%)

Capacity (t/h): 400~450

Model of motor: YKK560-10

Power (kW): 800

Rotational speed (r/min): 740

Voltage (v): 6000/10000

Fluid coupling model: YOX1150
