-Off with the arrest Installation Instructions broken belt protection

product description

DDZ or ordinary steel strong type of rack, hanging off the belt conveyor belt protection.
Currently on the market sold off with the arrest of the belt is. Most eccentric roller line contact arrest belt, while off DDZ series conveyor belt is a surface contact arrest arrest belt

working principle

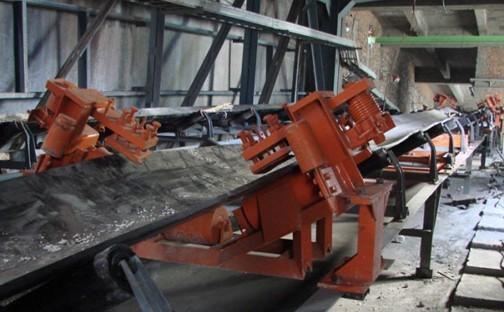

On tape-off with the arrest device (DDZ-S type)

Belt conveyors in normal operation, belt under arrest the brake blocks contact with the belt, and can backstop roller rotate with the belt. When breakage occurs belt containing material belt sagging decline, the pressure in breaking Hanging can and left and right sides of the plane of the brake brake block to wedge along the track of rapid oblique displacement, gradually narrowing the distance between the brake block backstop rollers, with the arrest, eventually arrest the decline belt grip. At the same time downward slide hanging backstop roller can trigger a flameproof sensor, outwardly passive contact signal output with a broken alarm.

Tape off the belt under arrest devices (DDZ-X type)

Belt conveyors in normal operation, the lower belt is not in contact with the lower brake blocks and eccentric rollers when breakage occurs belt, mounted beneath the upper belt of power arm force decline, driven by a connecting rod mechanism, springs, pins consisting of The rapid release of eccentric rollers, the eccentric roller and the tape running in the same direction, so that the gap under the brake block and the eccentric roller diminishing quickly arrest the tape. alarm outwardly passive contact signal output with a broken alarm.

Conditions apply

Tape width) 650mm

The transportation angle) 8 °

In the form of steel-frame chassis, hanging

Roller groove angle various groove angle

Technical Parameters

Unilateral brake width 60mm ~ 120mm

The amount of custom power) 20kn / set

Failure load) 50kn

Sliding distance 200mm ~ 600mm

Running resistance (400n

Mounting pitch on the arrest off

Bandwidth (mm) Installation distance (m)

10°~12°13°~15°16°~18°19°~22°) 22°

8007060504030

10006050403030

12004040303030

14004040303030

16004040303030

Under arrest off the mounting pitch

Bandwidth (mm) Installation distance (m)

10°~12°13°~15°16°~18°19°~22°) 22°

8007060505040

100070 60505040

12006050403030

14006050403030

16006050403030

NOTE: Minimum number of installations at least two groups
