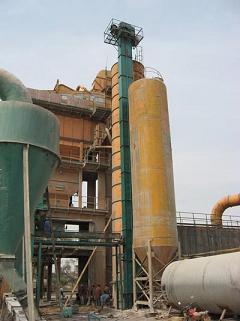

D, HL type bucket elevator

A; D; HL type bucket elevator structures:

D, HL type Bucket elevator Composition and operation of the drive section; an intermediate section; upper section; the lower section
1, the lower section, the lower housing and tensioning drum (or tension sprocket group) composed. HL type bucket elevator with interchangeable modular sprockets, sprocket rim long life, simple replacement of the lower part of When the hammer box Constant use automatic tensioning device for automatic tensioning, maintain a constant tension to avoid slipping or off the chain of causal factors encountered while stuck in the funnel caused phenomenon, can effectively protect the lower shaft and other parts .
2, the upper section: the upper housing, hood and drive roller (or drive sprocket group) components.
3, the intermediate section: starting from the support, protection and sealing the central cabinet composed of HL type bucket elevator Central is available in single and dual-channel two forms.
4, Drive: by an electric motor, reducer, V-belt transmission parts and other components backstop new uses hardened reducer, reliable transmission, load capacity, light weight, low noise, long life, compact press. use different reducer, drives, divided ZL type and YY-two (also according to user requirements rationing other drive form), according to different power have C1, C2, C3, C4 and other system of law; according to different positions relative to the body divided into left and right equipment installed.
5, run parts: the hopper, rubber conveyor belt or ring chain, chain rings and other components hook hopper divided Q-type (light) S-type (deep bucket) HL traction member of two types of high intensity ring... chain, reliable performance, long life.

Two; D; HL type bucket elevator model type and scope:

D Type - belt bucket elevator, using centrifugal discharge; loader digging.
HL type - ring chain bucket elevator, using centrifugal discharge, digging loader.
This series bucket elevator is adapted to vertical transportation up a bulk density of less than 1.5 t / m3, easy to dig a powdery, granular; small block of low-mill cut materials, such as coal, cement, gravel, sand, fertilizer, food, etc. D-type conveyor material temperature does not exceed 60 ℃, HL type conveying material temperature does not exceed 250 ℃.
D-type bucket elevator main technical parameters in Table 1, H1-type bucket elevator main technical parameters in Table 2

Three; D; HL type bucket elevator machine main technical parameters:

Table 1

Table 2

The new one hundred million coal, always in good faith, to quality of survival, to the credibility of development. Based on customers, providing customers with the highest quality products, the best quality service. We warmly welcome you to inquire!

Sales Manager: Hou Guijuan

Sales Hotline: 0537-315135815376502873

Work QQ: 1684599823

Want: yimei018

MSN E-mail:. Yimeijixiehou @ 163 com

Company Name: Jining one hundred million coal Machinery Equipment Manufacturing Co., Ltd.

Choose one hundred million coal! Credit is guaranteed! Quality assurance! Service is guaranteed!
