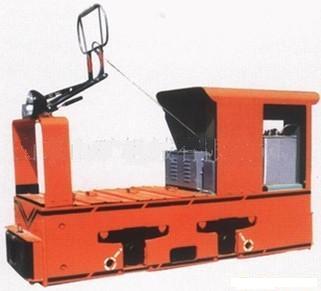

DC-linear motor car

Model: zk1.5- (6/7/9) / 100-1

The main technical parameters:

Motorcycle Model: ZK1.5-7 / 100-1

Sticky (t): 1.5

Gauge (mm): 600/762/900

Rated voltage (v): 100

Traction (kn): 2.705

Speed ​​(km / h): 4.28

Locomotive structure speed (km / h): 10

Number of traction motor (kw): 1 * 3.5

Minimum radius of curvature (m): 5

Wheelbase (mm): 650

Speed ​​mode: direct control contact

Brake: mechanical (shoe type) / mechanical (internal expanding shoe)

Transmission: two enclosed gear box drive

Traction height (mm): 210/320

Pantograph height: 1800-2200

Dimensions (mm):

Length: 2190 Width: 914/1076/1214 height: 1550

The new one hundred million coal, always in good faith, to quality of survival, to the credibility of development. Based on customers, providing customers with the highest quality products, the best quality service. We warmly welcome you to inquire!

Sales Manager: Hou Guijuan

Sales Hotline: 0537-315135815376502873

Work QQ: 1684599823

Want: yimei018

MSN E-mail:. Yimeijixiehou @ 163 com

Company Name: Jining one hundred million coal Machinery Equipment Manufacturing Co., Ltd.
