Supply crusher

The series has a simple structure, large crushing ratio, low energy consumption, uniform particle size is too small and crushed phenomenon, easy maintenance, adjustment of product size range, selectable crushing, etc. for cement, transportation (rail; Highway; Bridges), refractories, coal, metallurgy, electric power, building materials and other industries for use in fine crushing of materials, such as rock, limestone, clinker, slag, coke, coal, etc. Among PF-II, PF-III type Impact crusher has a hard rock crushing, wear plate hammer, manual screw or hydraulic opening and other characteristics, widely used in applications where up to 350 MPa compressive strength of basalt hard rock crushing.

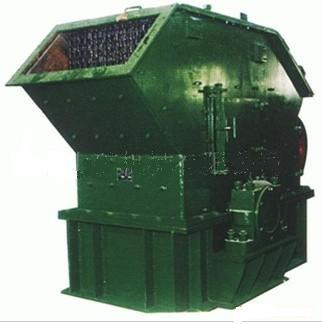

PF-I series crusher:

Model: PF0504I Specifications: 500 * 400

The maximum feed size (mm): 100 Production capacity (t / h): 4 ~ 8

Power (kw): 7.5 Weight (without motor) (kg): 1350

The particle size (mm): 0 ~ 20 Dimensions (L * W * H) (mm): 1425 * 1570 * 1010

Model: PF0707I Size: 750 * 700

The maximum feed size (mm): 200 Production capacity (t / h): 15 ~ 25

Power (kw): 37 Weight (without motor) (kg): 3642

The particle size (mm): 0 ~ 25 Dimensions (L * W * H) (mm): 2400 * 1710 * 1620

Model: PF1007I Specifications: 1000 * 700

The maximum feed size (mm): 250 Production capacity (t / h): 20 ~ 30

Power (kw): 37 Weight (without motor) (kg): 6000

The particle size (mm): 0 ~ 30 Dimensions (L * W * H) (mm): 2320 * 1200 * 1624

Model: PF1210I Specifications: 1250 * 1000

The maximum feed size (mm): 250 Production capacity (t / h): 40 ~ 80

Power (kw): 95 Weight (without motor) (kg): 15250

The particle size (mm): 0 ~ 50 Dimensions (L * W * H) (mm): 3357 * 2280 * 2460

The new one hundred million coal, always in good faith, to quality of survival, to the credibility of development. Based on customers, providing customers with the highest quality products, the best quality service. We warmly welcome you to inquire!

Sales Manager: Hou Guijuan

Sales Hotline: 0537-315135815376502873

Work QQ: 1684599823

Want: yimei018

MSN E-mail:. Yimeijixiehou @ 163 com

Company Name: Jining one hundred million coal Machinery Equipment Manufacturing Co., Ltd.

Choose one hundred million coal! Credit is guaranteed! Quality assurance! Service is guaranteed!
