Spec & Model

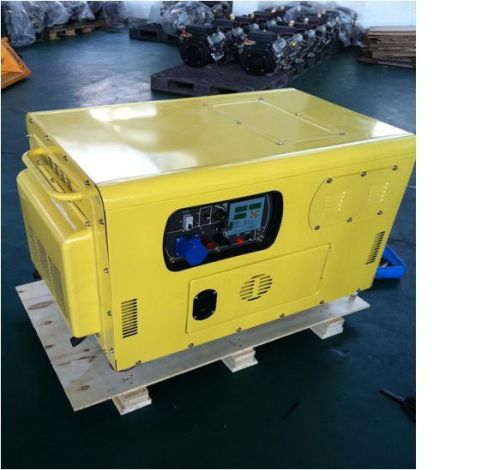

LT11000STA

Rated frequency (Hz)

60

Rated output power (kVA)

9

Max.power (kVA)

9.5

Rated voltage (V)

240

Rated current (A)

39.1

Power factor (cosφ)

Three0.8 (lag)

Insulation

F

Pole No.

2

Exciting way

Brush, exciting-self voltage-constant (with AVR)

Panel type

T: General panel/ TA: Intelligent panel

out socket

Single-phase socket; wiring terminal Single-phase socket; Three-phase socket Single-phase socket; wiring terminal Single-phase socket; Three-phase socket

DC12V output

12V, 8.3A

Dimensions: L*W*H (mm)

1120*660*700

Net weight (Kg)

245

Noise (7m) dB (A)

82

Structure type

Fully-closed

Engine model

R2V840

Type

V-twin; two-cylinder; four-stroke; DI

Cylinder No.-bore*stroke (mm)

2-86*72

Total displacement (ml)

840

Compressed ratio

20: 01

Cooling way

Air-cooling

Lubricating way

Pressure& splashing

Starting way

Electric Start-up

Fuel used

0# (summer) -10# (winter) -35# (cold winter) light diesel

Oil used

SAE10W30 (CD grade above)

Lubricating oil capacity (L)

2.7

Starting motor capacity (V-kW)

12V1.4kW

Dynamo capacity (V-A)

12V8.3A

Battery capacity (V-Ah)

12V45Ah

Fuel consumption under full loading (g/ kw.h)

270
