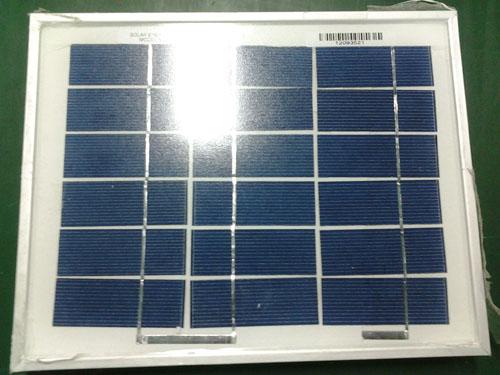

Poly-crystalline 3W Solar Panel

Series number: TM003P-18

Manufacturer: TM Solar Power Co., Ltd.Jiangyin City, China

Applications

Commercial/ industrial building PV solar roof-top off-grid systems.

Residential PV solar roof-top off-grid systems.

Any commercial / industrial ground mount off-grid systems.

Other off-grid industrial and commercial solar PV applications.

Warranty

1. Seller should adopt best materials and workmanship to manufacture and supply the above stated commodities to Buyer, 100% checked and TUV, VDE, UL, MCS standards compliant

2.10 years warranty for not less 90% rated power output, and 25 years for not less 80% output

3.100% Dielectrical safety test and checking

Electrical Characteristics

All specified Parameters are at STC 25C Ambient, 1000W/ m irradiance and AM 1.5

Pmpp	Vmpp	Impp	Voc	Isc	Temp. change coefficients			Unit
W	V	A	V	A	Pmpp	voltage	current	Weight
3	9	0.34	10.62	0.42	-0.1322w/ C	-0.1011V/ C	0.0013A/ C	0.6kgs

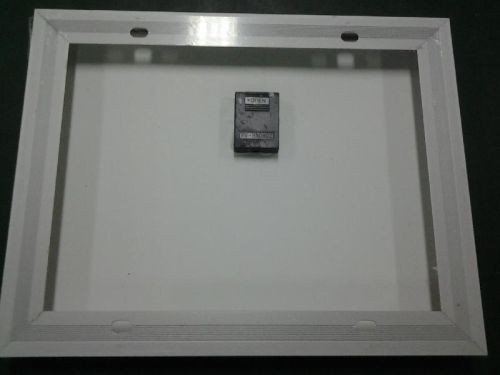

Mechanical Characteristics

Cable type, Diameter and Length	4mm; TUV certified; 1000mm
Type of Connector	Compatible Type IV
Number, type and arrangement of cells	18 pcs, Poly-Crystalline Silicon (3*6)
Cell Size (mm)	111*45
Dimension (mm)	280x340x24
Weight (kg)	1
No.of Draining Holes in Frame	4
Glass, Type and Thickness	High Transmission, Low lron, Tempered Glass 3.2mm
