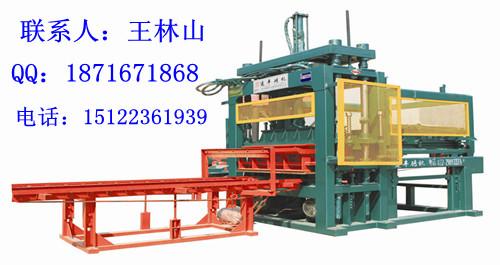

JF-QT5-20A rich type brick, this device is simple to operate, easy to maintain, forming rate, is your first choice to get rich!

JF-QT5-20A multifunction machine shock compression tiles

(A) Specific configuration:

No.

Part Name

power

Remark

1

Host, fabric machine, pumping Station

22KW

2

9 m conveyor

2.2KW

3

400 biaxial horizontal mixer

15KW

4

The brick sent to board

5

Secondary fabrics machine

Optional brick production

(Ii) the main technical parameters:

No.

project

parameter

1

Shock shock force

78KN

2

Vibration frequency

5000 / min

3

Amplitude

15mm

4

noise

95db

5

Vibration time

6 seconds / times

6

Dimensions

3500 * 1800 * 2500 (mm)

7

Capacity

24.2KW

8

Total Weight

6 tons

9

Maximum pressure

10 tons

10

Pallet size

1100 * 570 * 20 (mm)

11

Operation number

5-7 people

12

Land area

≥5000m2

(C) applies brick and yield:

Product specification (L * W * H) mm

Forming blocks

Production cycle

Output per hour

Standard bricks 240 * 115 * 53 (mm)

32

20 seconds / times

5760

Hollow brick 390 * 190 * 190 (mm)

5

20 seconds / times

900

Porous brick 240 * 115 * 90 (mm)

16

20 seconds / times

2880

Bread brick 100 * 200 * 60 (mm)

18

20 seconds / times

3240

S Brick 225 * 200 * 60 (mm)

16

20 seconds / times

2880

Curb 1000 * 150 * 300 (mm)

1

40 seconds / second

90

(Iv) Equipment:

JF-QT5-20A type equipment through years of careful research, continuous improvement crafted, the model of the device in terms of quality and stability can be said Zhen to perfect the model main features are: simple operation, replacement of mold can produce different Type Dimensions of standard bricks, hollow blocks, pavers, etc., truly a machine in the premise of ensuring the stability of the equipment, and through continuous improvement, equipment vibration force and vibration frequency increases, with a unique hydraulic and auxiliary system, the use of the equipment out of the product compactness and strength greatly improved, to make up for the presence of unburned pressure on the market is not enough, there are questions on the shortcomings of people unburned quality.

Through continuous improvements make devices from stirring to a brick truly pipelined operation, significant savings in labor, due to the high production of dense articles, so the use of standard bricks produced by the device can then stacking, saving manpower, and solve problems early construction must first invest large sums of money to buy a large number of pallets, because we plant equipment production standard bricks only need about 20 pallets. Due to the low equipment cost, simple to operate, easy to maintain, making some funds are not too abundant, there is no knowledge of the construction of small individual operators realize the dream factories. investment funds less than bring greater economic benefits.

(E) Features:

1. The mold can be changed to achieve diversification of one machine.

2. Reciprocating fork type forced rapid cloth evenly.

3. The hydraulic shock shock combined to ensure product uniformity solidity.

4. Forced mold synchronous structure to ensure consistency of product thickness, Tuomo smooth, high yield.

5. carry plate, the plate, aggregate, vibration, pressing automation.
