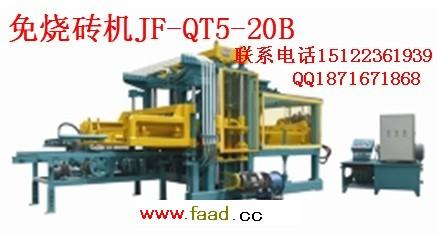

JF-QT5-20B multifunction shock compression tiles molding machine
(A) Specific configuration:
No. | Part Name | power | Remark |
1 | Host computer | 22KW |
|
2 | 9 m conveyor | 2.2KW |
|
3 | 400 biaxial horizontal mixer | 15KW |
|
4 | The brick sent to board | 0.75KW |
|
5 | Secondary fabrics machine |
| Optional brick production |
(B) technical parameters:
| |||
No. | project | parameter | |
1 | Shock shock force | 78KN | |
2 | Vibration frequency | 5000 times / minute | |
3 | amplitude | 15mm | |
4 | noise | 85db (A) | |
5 | Vibration time | 7 seconds / times | |
6 | Dimensions | 3970 * 1830 * 2350 (mm) | |
7 | Capacity | 28.2KW | |
7 | Total Weight | 5 t | |
8 | Maximum pressure | 10 tons | |
9 | Pallet size | 1150 * 570 * 20 (mm) | |
10 | Operation number | 5-7 people | |
11 | Land area | ≥4000m2 | |
(C) applies brick and yield:
Product specification L * W * H (mm) | Forming Number | Production per hour | Production cycle |
Bread brick 200 * 100 * 60 | 20 | 3600 | 20 seconds / times |
Standard bricks 240 * 115 * 53 | 32 | 5760 | 20 seconds / times |
Hollow brick 390 * 190 * 190 | 5 | 900 | 20 seconds / times |
(Iv) Features:
1. The electronic control system than the model (A) Type increased PLC control system, making the model AutoComplete cloth, pressing process timing, measurement control, fully guaranteed product thickness, density, and shorten the molding cycle, so that the yield greatly improved.
2. The combined company independently developed Jian Feng (Vibration and hydraulic principles) designed hydraulic system makes part of the cylinder running smoothly, stability, speed, improve molding cycle time.
3. Unique cooling technology, making the device more stable with bricks.
4. Forced mold synchronous structure to ensure consistency of product thickness, ejector smooth high yield.
5. The expected increase in rail travel system car and driving stability device, so skip walking stability, reduce equipment leakage of material, thus reducing the man-hours spent cleaning up and unnecessary waste material
6. Patent lengthened guide sleeve, the sleeve made of nickel-chromium alloy, flat hardness, finish high pillar that the mold from stable, reduce the landing uneven mold caused by mold shortened equipment life, reduce product errors.
7. Cloth reciprocating fork type using fabric machine mode, cutting fast and uniform, improve molding efficiency, and ensure product density uniformity and stability, the unique design of the joint, so that the tooth cloth, replace the shaft easier, reduce the time needed for maintenance .
