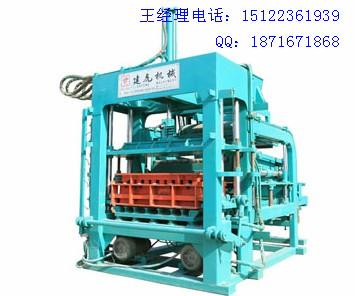

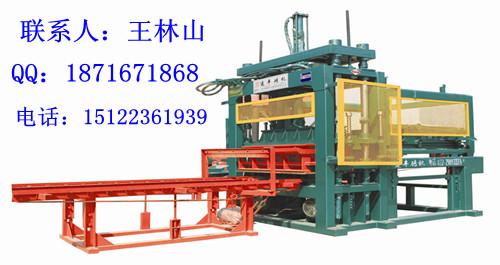

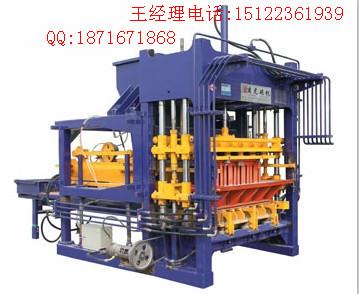

JF-QT5-15A automatic shock compression tiles molding machine

(A) Specific configuration:

No.

Part Name

power

Remark

1

Host; fabric machine; pumping station; cabinet; secondary feeder; the brick sent to board

32.25KW

2

7 m conveyor

2.2KW

3

JS500 mixer

24KW

4

Ingredients warehouse

6.6KW

5

Automatic pack machine

1.55KW


(Ii) the main technical parameters:

No.

project

parameter

1

Shock shock force

78KN

2

Vibration frequency

6500 times / minute

3

amplitude

15mm

4

noise

95db (A)

5

Vibration time

6 seconds / times

6

Dimensions

3200 * 2100 * 2600 (mm)

7

Capacity

25.7KW

8

Total Weight

6 tons

9

Maximum pressure

10 tons

10

Pallet size

1100 * 570 * 20 (mm)

11

Operation number

6 people

12

Land area

≥5000m2


(C) for brick and yield:

Product specification L * W * H (mm)

Forming Number

Production per hour

Production cycle

Porous brick 240 * 115 * 90

16

3840

15 seconds / times

Standard bricks 240 * 115 * 53

32

7680

15 seconds / times

Hollow brick 390 * 190 * 190

5

1200

15 seconds / times

Bread brick 200 * 100 * 60

18

3240

15 seconds / times

(Iv) Features:

1, Kin Fung latest patented technology dual vibration table vibration, making mass vibration effect is more significant.

2, Reciprocating fork type forced rapid cloth evenly.

3, in conjunction with the hydraulic shock shock, ensure uniform density of the product.

4, automatic control, Japan imported computer PC control and effective so closely with mechanical vibration and hydraulic, high yield, low failure rate.

5, fly ash, slag, coal gangue and other industrial waste can be used as raw materials.

6. waste mixed with up to 75%.

7, supporting automatic code vibration machine, so that increase productivity, and big savings in manpower.

8, the intensity level 5-70MPa.

9. A substantial increase in production capacity of equipment for large and medium-sized brick.
