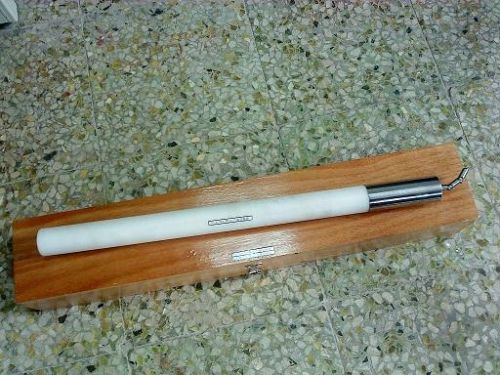

Children test finger | on the 19th test probe | 18 Specimen No. probe

18 children test bend refers to (the 18th test probe)
Basic introduction:

1, made according to the corresponding provisions of GB4706.21-2008, IEC61032-1997 and UL and so on.
2, children test bending finger (the 18th test probe) is a household and similar electrical appliances essential for protection against electric shock test equipment.
Technical Parameters:

1, bend refers to the diameter: 8.6mm

2, head radius: 4.3mm

3, bending refers to the total length: 57.9mm (three per session 19.3mm)

4, the first handle diameter: 38.4mm

5, Section handle length: 101.6mm

6, Section handle diameter: 38.1mm

7, Section handle length: 451.6mm

8, reference standards: IEC61032: 1997 Figure 12, GB4706.21-2008

19 children test bent finger (the 19th test probe)
Basic introduction:

1, made according to the corresponding provisions of GB4706.1, IEC61032-1997 and UL and so on.
219 children test bending finger (the 19th test probe) is a household and similar electrical appliances shock protection necessary appliance testing.
Technical Parameters:

1, bend refers to the diameter: 5.6mm

2, head radius: 2.8mm

3, bending refers to the total length: 44mm (three General)

4, the first handle diameter: 25.9mm

5, Section handle length: 101.6mm

6, Section handle diameter: 25.4mm

7, Section handle length: 464.3mm

8, reference standards: IEC61032: 1997 Figure 13, GB4706.1
