Standard Test pointer off
Basic introduction :

1, made ​​according to the corresponding provisions of GB4706.1, GB2099.1 and relevant IEC, UL and so on .
2, Standard Test pointer off is carried out household and similar electrical appliances shock protection necessary appliance testing.

Technical Parameters:

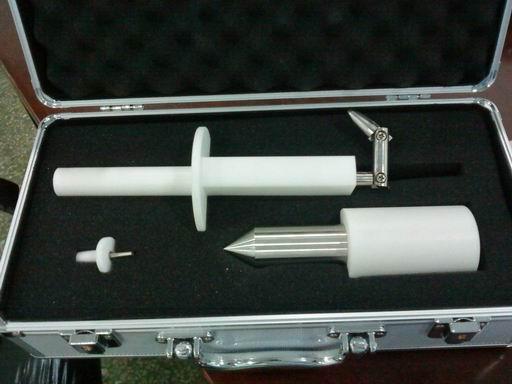

Test pointer off by a three-piece consisting of :

First, the Class B test bending fingers ( Class B test probe )

1, bend refers to the diameter : 12 mm
2, curved finger length : 80mm ( three total length )
3, the baffle diameter : 50mm
4, baffle length : 100mm
5, the reference standard : GB4706.1-2005 8.1.1 strip, IEC61032: 1997 Figure 2
Second, the test needle ( 41 test probe )

1, probe diameter : 30mm
2, probe length : 80mm
3, the handle diameter : 50mm
4, handle length : 80mm
5, the reference standard : IEC61032: 1997 16

Third, the test pin ( the 13th test probe )

1, probe diameter: head 3mm, 4 mm tail
2, probe length : 15mm
3, the baffle diameter : 25mm
4, baffle thickness : 4mm
5, the reference standard : IEC61032: 1997 9
