E17 lamp through regulation; E17 lamp holder only regulation; E17 lamp holder contact performance regulations

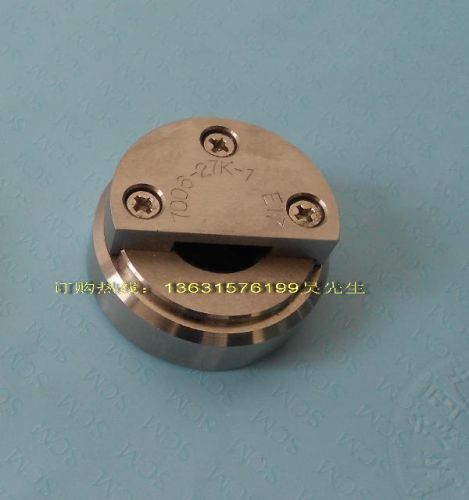

E17 lamp holder through regulation 7006-27K-1
E17 lamp holder only regulation 7006-28F-1
E17 lamp holder contact performance regulations 7006-26D-1

E17 lamp holder through regulation stop

E17 lamp holder through regulation to use

Objective : to test the finished lamp E17 screw cap the maximum size and the minimum value T1

Instructions:
a) when the inner cap is fully finished family into the gauge on the lamp, lamp center contacts should be in contact with the X-plane .
b) When the lamp is removed from the gauge, at least it should be rotated two full turns to off threads.

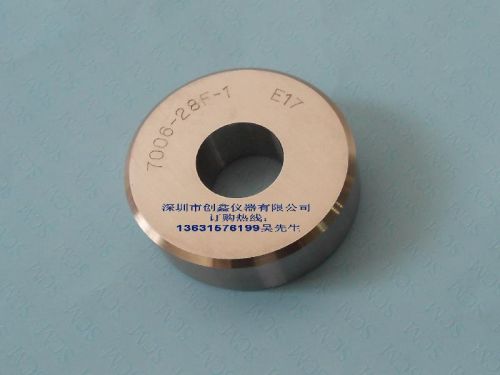

Supply E17 lamp holder only regulation 7006-28F-1
E17 lamp holder only regulation detection methods:

Objective : to test the finished lamp E17 screw cap the minimum outside diameter ( dimension d).

Usage: When the gauge set on the finished threaded cap lamp, lamp center contact should not protrude gauge X surface .

( Note: The test gauge using only its own weight carried )
